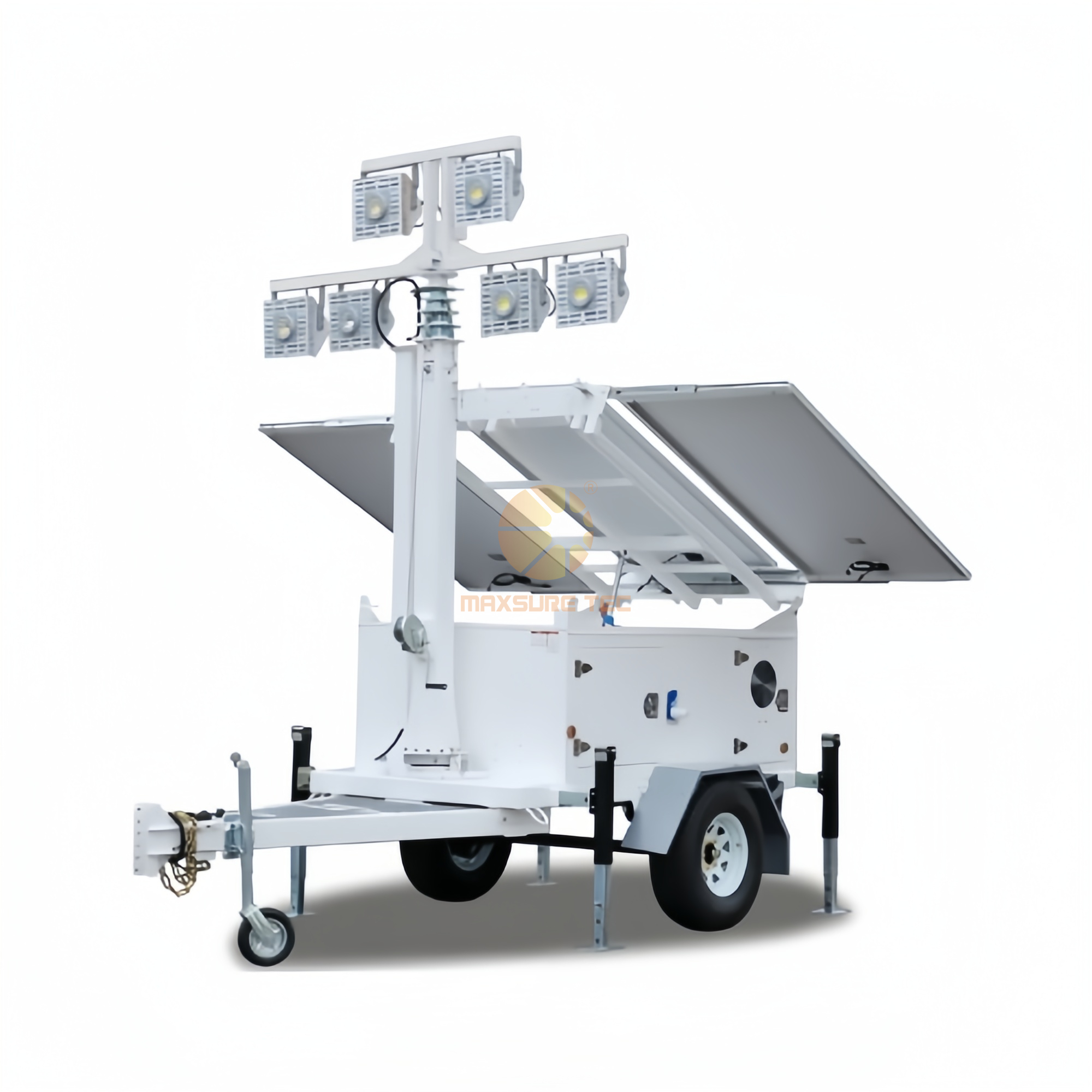

Maxsure Tec
Features
3*330W solar panels
4*200Ah/6*150Ah/6*200Ah gel batteries (optional) DC24V system
4*60W/4*100W/6*100W LED light (optional)
Optional 6 to 9 meters manual/electric/hydraulic mast
Single axle trailer
TECH SPECS: | ||||||||||||||||||
TOWER | DIMENSIONS | |||||||||||||||||
LIGHTING FIXTURE DETAILS | ||||||||||||||||||
Length: | 4100mm | |||||||||||||||||
Type of Lights: | LED | |||||||||||||||||
Width: 1880mm | ||||||||||||||||||
Lamp Wattage: | 60/100W | |||||||||||||||||
Height: | 2750mm | |||||||||||||||||
No.of lights: | 4/6 | |||||||||||||||||
1440kg | ||||||||||||||||||
Weight: | Light Output(W): | 2401400/600 | ||||||||||||||||
TRAILER DETAILS | ||||||||||||||||||
Lumens per Watt: | 150 | |||||||||||||||||
Trailer Type: Single Axle | Working Life Time(hr): | 50000 | ||||||||||||||||
Tire and Rim Size: 15" | ||||||||||||||||||
Light Bar Rotation: | 355 Degrees | |||||||||||||||||
Stabalizer Supports:4xManual | ||||||||||||||||||
Light Bar Tilt: | Optional | |||||||||||||||||
Drawbar: A Frame | ||||||||||||||||||
Mast Raise/Extension:Manual/Electric/Hydraulic | ||||||||||||||||||
Tow Hitch: 50mm Ball/70mm Ring | ||||||||||||||||||
Mast Height(m): | Optional | |||||||||||||||||
Mud Guard/Wheel Chock: | Special Design | |||||||||||||||||
Coil Cable: | 4*4sgmm/4*6sqmm | |||||||||||||||||
Backup Generator: Optional | ||||||||||||||||||
Wind Rating Speed: | 100km/h | |||||||||||||||||
Working Temperature(℃): | -35~60 | |||||||||||||||||
SELECTION TABLE: | ||||||||||||||||||
Code Solar Panel(W) LEDW Mast(m) Battery(Ah) Generator(kW) Trailer Standard | ||||||||||||||||||
VTS900B-L | 3*330W (adjustable angle) | 240(4*60W) 400(4*100W) 600(6*100W) | MM (manual mast) | 6 | B800(4*200Ah) B900(6*150Ah) B1200(6*200Ah) | G3(gasoline 3kW) D3(diesel 3kW) D5(diesel 5kW) | EB(eletric AU/ brake) US/MB(mechanical EU brake) | |||||||||||
7.5 | ||||||||||||||||||
9 | ||||||||||||||||||
EM (electric mast) | 6 | |||||||||||||||||
7.5 | ||||||||||||||||||
9 | ||||||||||||||||||
HM (hydraulic mast) | 6 | |||||||||||||||||
7.5 | ||||||||||||||||||
9 |
Application Scenario
Emergency Lighting: In emergency situations, the Energy Saving Solar Lighting Tower proves to be an invaluable asset. Its ability to function independently from the grid ensures that it can provide immediate lighting during power outages or natural disasters. This feature makes it suitable for emergency response teams, disaster management agencies, and relief organizations to effectively illuminate affected areas and aid in rescue and recovery operations.
