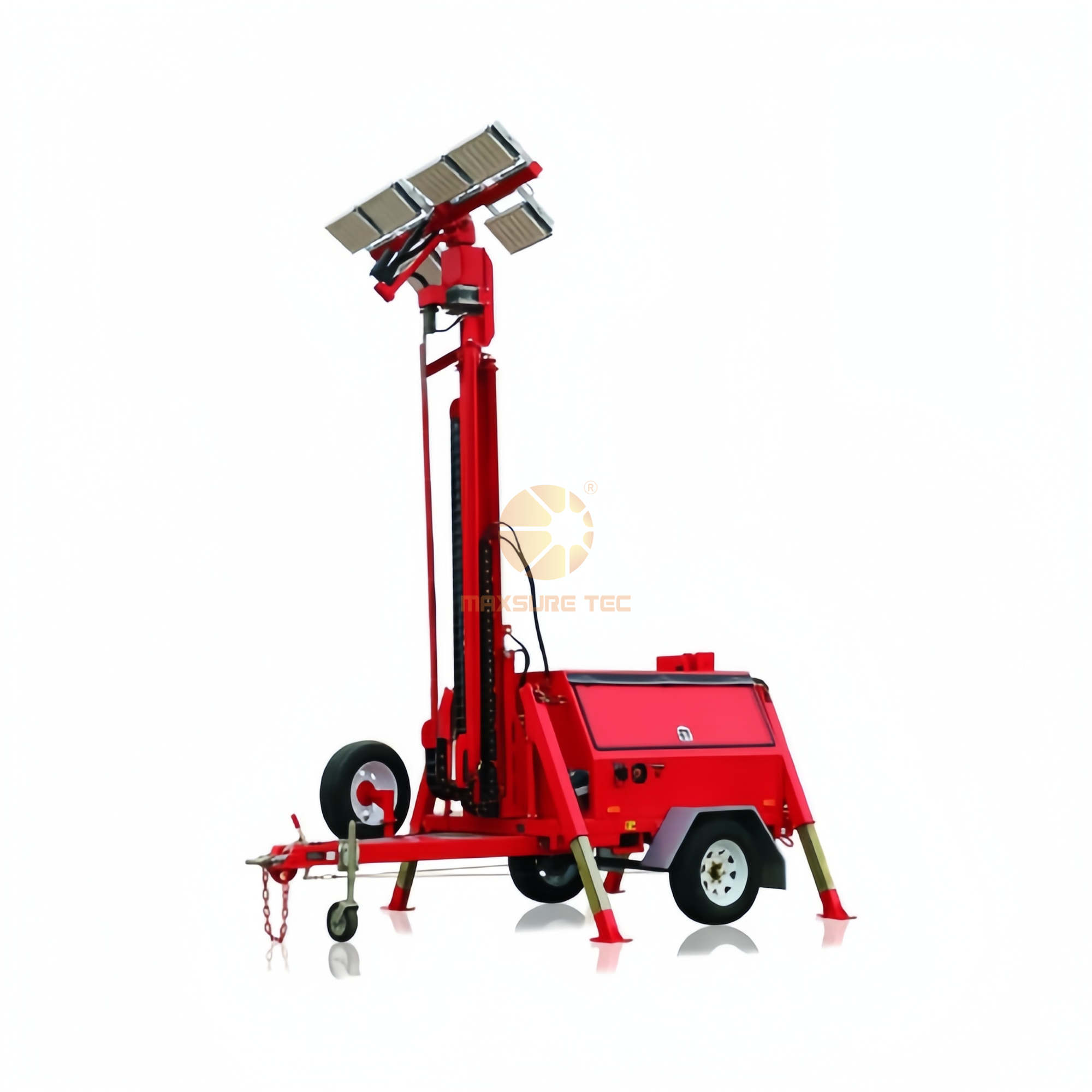

Large Size Lighting Tower Powered with Heavy Duty Brushless Alternator

Genset powered Lighting Tower, an essential solution for outdoor lighting in various industrial settings. Designed to cater to the needs of mining areas, outdoor maintenance, construction sites, warehouses, and docks, this product ensures long-lasting illumination in demanding environments.

Equipped with state-of-the-art technology, our Lighting Tower provides reliable and efficient outdoor lighting. With its powerful genset, it guarantees a stable power supply, ensuring uninterrupted illumination throughout the night. This feature is particularly valuable in remote areas or locations with limited access to electricity.

Our Lighting Tower is specifically engineered for durability, capable of withstanding harsh weather conditions and rugged environments. Its robust construction ensures longevity and reduces maintenance requirements, making it a cost-effective choice for long-term lighting needs.

Featuring a user-friendly design, this lighting solution is easy to operate and can be set up quickly. Its adjustable height and 360-degree rotation capabilities allow for precise and customizable lighting, ensuring optimal visibility in any situation.

Safety is of utmost importance, and our Lighting Tower is equipped with necessary safety features to protect both the equipment and the surrounding environment. It meets all industry standards and regulations, providing peace of mind to our customers.

With its versatility and reliability, our Genset powered Lighting Tower is the perfect choice for any outdoor lighting requirement. Trust in our professional-grade product to deliver exceptional performance and illuminate your work site efficiently.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Maxsure Tec

Features

1.Clean,quiet and efficient Perkins engines coupled with heavy duty Leroy Somer brushless  alternator.(Other  power options are available on request)

2.Optimised cylinder head configuration for optimum fuel and oil consumption and maximum efficiency

3.Cyclone style air cleaner and earth leakage protection

4.Residual   Current   Device(RCD)protection and RCDmain switch installed in generator supply circuit with a test point

5.Circuit breaker installed into lighting circuit and all circuit breakers are fitted in IP 56 enclosures


Tower Details
Environmental:Bunded
Total Lumens;324000
Light Output in KW:2160WLumens per Watt:150.0
Mast Height m/ft:9m/29'6'Fuel Capacity:220L


Tower dimensionsEquipment detailsLight details
Width:                  2380mm/7'8"Fuel:                            DieselType of Lights:LED
Length:            5000mm/16'4"Engine:             Perkins403A-Lamp Wattage:360W
Height:               2310mm/7'6"11GNo.oflights:6
Wet weight:                     1920kgsNo.Engine                           3Light Outputin KW:2160W
Cylinders:
Light Tilt:
Yes
Engine                        NatureMast Raise/Manual/
Aspiration:
Extension:Hydraulic
Altemator:           LSADC40VS0Mast Height m/ft:9/29'6"
Voltage:                      DC48VMast Rotation:359°
Tire and Rim size:                 15"Wind Rating
Stabaliser Supports:HydraulicSpeed:100 km/h
Tow Hitch:                    50mm

Application Scenario

In the realm of outdoor large-scale construction projects, the Lighting Tower Powered Genset proves to be an indispensable asset. This powerful lighting solution is specifically designed to illuminate vast construction sites, ensuring optimal visibility and safety during nighttime operations. With its robust construction and reliable performance, this product caters to the unique lighting requirements of various construction projects, ranging from infrastructure development to building construction.
