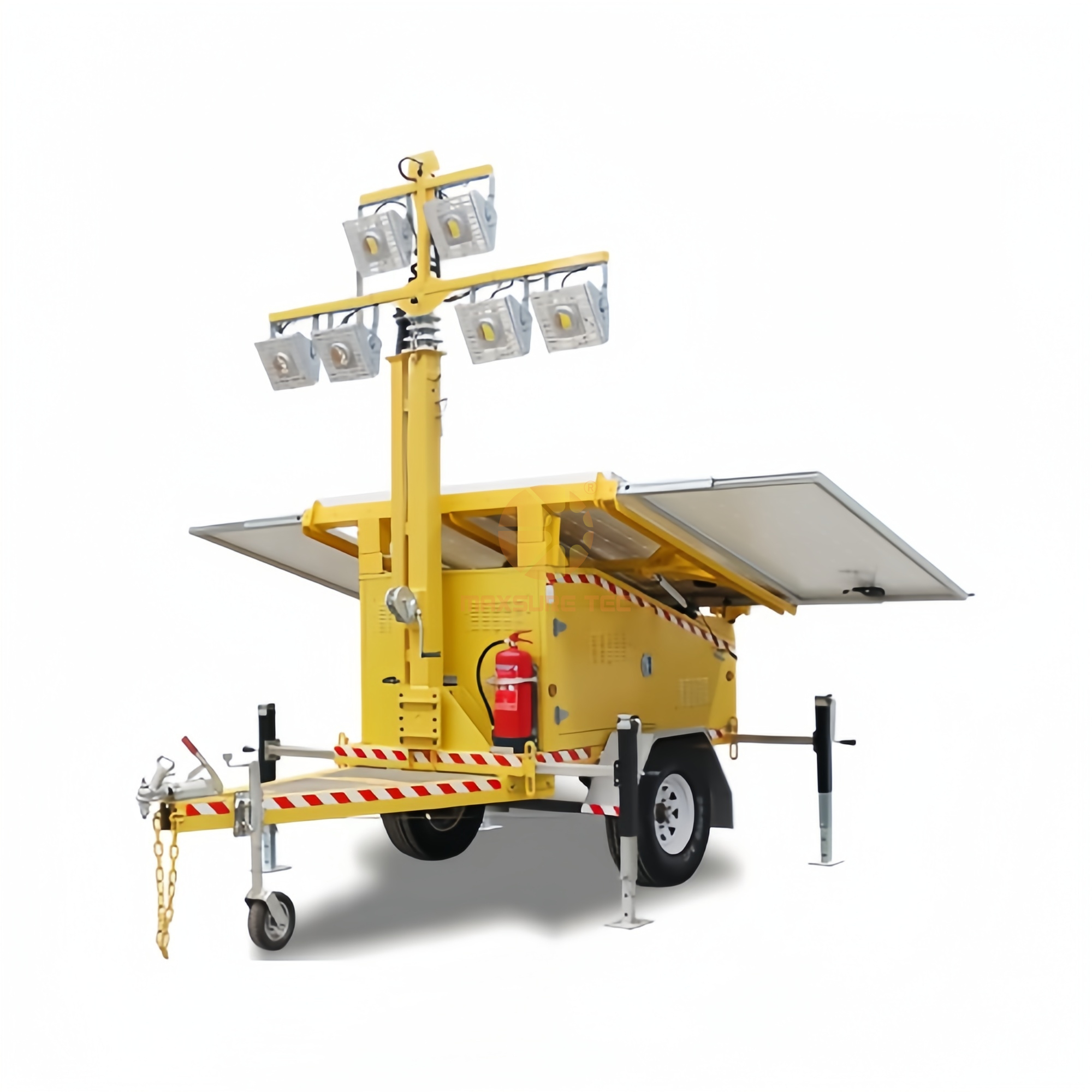

Maxsure Tec
Features
4*330W solar panels
4*200Ah/6*150Ah/8*150Ah gel batteries (optional) DC24V/DC48V system
4*60W/4*100W/6*100W LED light (optional)
Optional 6 to 9 meters manual/electric/hydraulic mast
Single axle trailer
TECH SPECS: | ||||||||||||||||||||
TOWER | DIMENSIONS | |||||||||||||||||||
LIGHTING FIXTURE DETAILS | ||||||||||||||||||||
Length: | 4100mm | |||||||||||||||||||
Type of Lights: | LED | |||||||||||||||||||
Width: | 2100mm | |||||||||||||||||||
Lamp Wattage: | 60/100W | |||||||||||||||||||
Height: | 2750mm | |||||||||||||||||||
No.of lights: | 4/6 | |||||||||||||||||||
1600kg | ||||||||||||||||||||
Weight: | Light Output(W); | 2401400/600 | ||||||||||||||||||
TRAILER DETAILS | ||||||||||||||||||||
Lumens per Watt: | 150 | |||||||||||||||||||
Trailer Type: Single Axle | Working Life Time(hr): | 50000 | ||||||||||||||||||
Tire and Rim Size: | 15" | |||||||||||||||||||
Light Bar Rotation: | 355 Degrees | |||||||||||||||||||
Stabalizer Supports: | 4xManual | |||||||||||||||||||
Light Bar Tilt: | Optional | |||||||||||||||||||
Drawbar: | A Frame | |||||||||||||||||||
Mast Raise/Extension:Manual/Electric/Hydraulic | ||||||||||||||||||||
Tow Hitch: | 50mm Ball/70mm Ring | |||||||||||||||||||
Mast Height(m): | Optional | |||||||||||||||||||
Mud Guard/Wheel Chock: | Special Design | |||||||||||||||||||
Coil Cable: | 4*4sqmm /4*6sqmm | |||||||||||||||||||
Backup Generator: | Optional | |||||||||||||||||||
Wind Rating Speed: | 100km/h | |||||||||||||||||||
Working Temperature(℃): | -35~60 | |||||||||||||||||||
SELECTION TABLE: | ||||||||||||||||||||
Code Solar Panel(W) LED(W) Mast(m) Battery(Ah) Generator(kW) Trailer Standard | ||||||||||||||||||||
VTS1200C-L | 4*330W (adjustable angle) | 240(4*60W) 400(4*100W) 600(6*100W) | MM (manual mast) | 6 | B800(4*200Ah) B900(6*150Ah B1200(8*150Ah) | G3(gasoline 3kW) D3(diesel 3kW) D5(diesel 5kW) | AU/ US/ FIL | EB(eletric brake) MB(mechanica brake) | ||||||||||||
7.5 | ||||||||||||||||||||
9 | ||||||||||||||||||||
EM (electric mast) | 6 | |||||||||||||||||||
7.5 | ||||||||||||||||||||
9 | ||||||||||||||||||||
HM (hydraulic mast) | 6 | |||||||||||||||||||
7.5 9 |
Application Scenario
Mining Areas and Ports:The Energy Saving Solar Lighting Tower finds extensive application in mining areas and ports. These environments often require high-intensity lighting for enhanced safety and productivity. This lighting tower can efficiently illuminate large mining sites, ensuring clear visibility for workers and machinery during night shifts. It is also suitable for port operations, providing effective lighting for loading and unloading activities, container yards, and storage areas.
Outdoor traffic safety equipment and outdoor engineering equipment products are important equipment to ensure people's safety during outdoor activities. These devices can not only improve people's safety in outdoor activities, but also improve the efficiency and quality of engineering construction. The following are our technical and service advantages.
Technical advantages:
1. Modern outdoor traffic safety equipment and engineering equipment adopt high-precision positioning technology, which can accurately locate the positions of personnel and equipment, improve safety and work efficiency.
2. These devices are equipped with intelligent monitoring systems, which can monitor the operating status and working environment of the devices in real time, detect problems in a timely manner, and take measures to ensure safety and stability.
3. These devices are made of high-strength materials, which have good wear resistance and corrosion resistance, and can be used for a long time in harsh outdoor environments.
4. These devices adopt high-efficiency and energy-saving technology, which can reduce energy consumption and operating costs, improve the service life and economic benefits of the equipment.
Service advantages:
1. providing customized services, designing and producing products that meet customer needs and requirements.
2. providing comprehensive after-sales service, including installation and debugging, training services, maintenance, etc., to ensure that customers can use the equipment normally and maintain its good condition.
3. Providing technical support, including equipment operation guidance, troubleshooting, maintenance and other services, to help customers solve problems during equipment use.
4. providing quickly respond to customer needs, promptly address customer issues and feedback, and ensure that customers can obtain a satisfactory service experience.
Our products have advanced technological advantages and high-quality service advantages, which can provide safe and efficient guarantees for outdoor activities and engineering construction. With the continuous development and progress of technology, these devices will continuously improve their performance and service level, bringing more convenience and safety assurance to people's outdoor life and engineering construction.
