Maxsure Tec
Features
3*330W solar panels
4*200Ah/6*150Ah/6*200Ah gel batteries (optional) DC24V system
4*60W/4*100W/6*100W LED light (optional)
Optional 6 to 9 meters manual/electric/hydraulic mast
Single axle trailer
TECH SPECS: | ||||||||||||||||||||
TOWER | DIMENSIONS | LIGHTING FIXTURE DETAILS | ||||||||||||||||||
Length: | 4040mm | Type of Lights: LED | ||||||||||||||||||
Width: | 1780mm | Lamp Wattage: | 60/100W | |||||||||||||||||
Height: | 2750mm | No.of lights: | 4/6 | |||||||||||||||||
Weight: | 1280kg | Light Output(W) | 2401400/600 | |||||||||||||||||
TRAILER DETAILS | Lumens per Watt: 150 | |||||||||||||||||||
Trailer Type: Single Axle | Working Life Time(hr): 50000 | |||||||||||||||||||
Tire and Rim Size: 15" | Light Bar Rotation: 355 Degrees | |||||||||||||||||||
Stabalizer Supports:4xManual | Light Bar Tilt: Optional | |||||||||||||||||||
Drawbar: A Frame | Mast Raise/Extension:Manual/Electric/Hydraulic | |||||||||||||||||||
Tow Hitch: 50mm Ball/70mm Ring | Mast Height(m): Optional | |||||||||||||||||||
Mud Guard/Wheel Chock: | Special Design | Coil Cable: 4*4sqmm/4*6sqmm | ||||||||||||||||||
Backup Generator: Optional | Wind Rating Speed: 100km/h | |||||||||||||||||||
Working Temperature(℃): | -35~60 | |||||||||||||||||||
SELECTION TABLE: | ||||||||||||||||||||
Code Solar Panel(W) LED(W) Mast(m) Battery(Ah) Generator(kW) Trailer Standard | ||||||||||||||||||||
VTS900A-L | 3*330W (fixed angle) | 240(4*60W) 400(4*100W) 600(6*100W) | MM (manual mast) | 6 | B800(4*200Ah) B900(6*150Ah) | G3(gasoline 3kW) D3(diesel 3kW) D5(diesel 5kW) | AU/ US/ EU | EB(eletric brake) MB(mechanical brake) | ||||||||||||
7.5 9 | ||||||||||||||||||||
EM (electric mast) | 6 7.5 9 | |||||||||||||||||||
HM (hydraulic mast) | 6 | B800(4*200Ah) B900(6*150Ah) B1200(6*200Ah) | N/A | |||||||||||||||||
7.5 |
Application Scenario

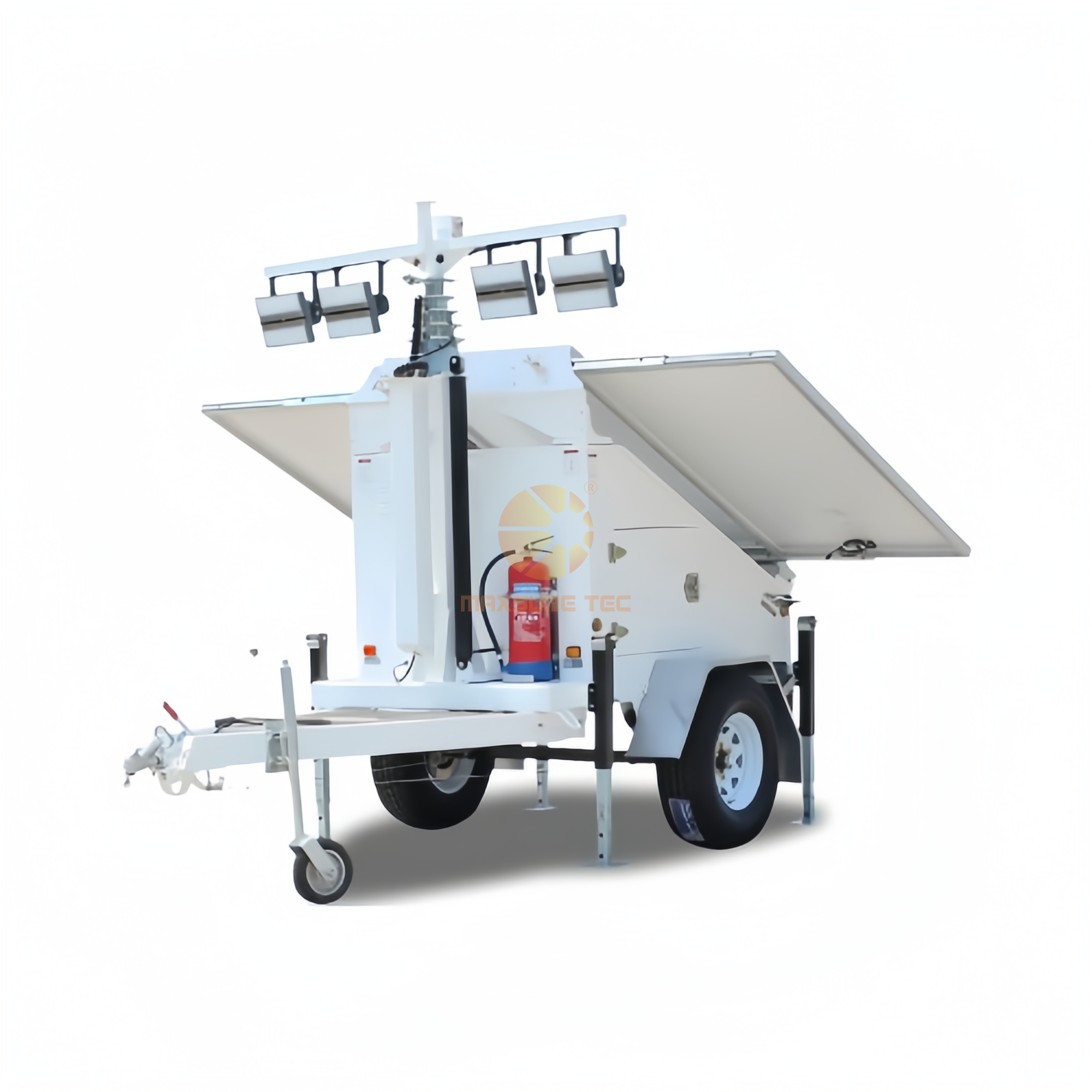

Outdoor Lighting: The Energy Saving Solar Lighting Tower is designed to provide efficient outdoor lighting solutions. It is ideal for illuminating various outdoor spaces such as construction sites, parking lots, sports fields, and public areas. With its advanced solar-powered technology, this lighting tower offers a reliable and sustainable lighting solution without the need for traditional power sources.
