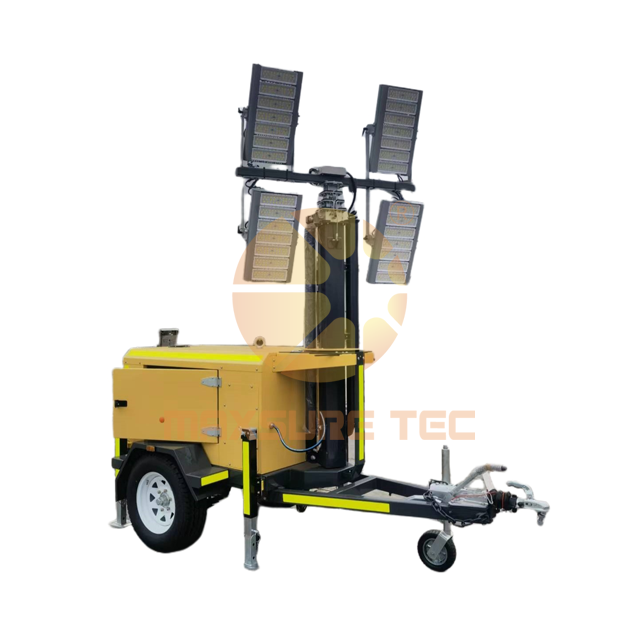

Diesel Generator Powered Mobile Lighting Tower

Diesel Generator Powered Mobile Lighting Tower, designed to meet all your illumination needs with utmost efficiency and reliability. This product is ideal for various applications such as emergency lighting, sports stadium illumination, temporary market lighting, and outdoor construction and maintenance lighting.

With its powerful diesel generator, this lighting tower ensures uninterrupted and bright illumination even in the most challenging environments. It is equipped with advanced technology to provide optimal lighting coverage, making it suitable for a wide range of settings.

Whether you require emergency lighting during power outages, need to illuminate a sports stadium for a night event, or require temporary lighting for a market, our Diesel Generator Powered Mobile Lighting Tower is the perfect solution. Its versatility and portability make it easy to transport and set up in any location.

This lighting tower is built to withstand harsh weather conditions and is designed for durability and longevity. Its robust construction ensures reliable performance, even in demanding outdoor environments.

Our Diesel Generator Powered Mobile Lighting Tower is not only efficient and dependable but also environmentally friendly. It is engineered to minimize fuel consumption and reduce emissions, making it a sustainable lighting solution.

Invest in our Diesel Generator Powered Mobile Lighting Tower and experience the difference it can make in your lighting requirements. With its exceptional performance and professional-grade features, this product is the ultimate choice for all your illumination needs.
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Maxsure Tec


Clean, quiet and efficient engines coupled with heavy duty meccalte brushless alternator. (Other power options are available on request)

Optimised cylinder head configuration for optimum fuel and oil consumption and maximum efficiency

Cyclone style air cleaner and earth leakage protection

Residual Current Device (RCD) protection and RCDmain switch installed in generator supply circuit with a test point

Circuit breaker installed into lighting circuit and all circuit breakers are fitted in IP 56 enclosures

Basic Specifications

Tower Details

Fuel: Diesel

Number of Engine Cylinders: 3

Engine Aspiration: Nature

Alternator: Meccalte LT3M-130/4

Hz: 50/60

Fuel Capacity: 70L

Tire and Rim size: 13"

Stabilizer Supports: Jacks

Tow Hitch: 50mm

Mast Raise/Extension: Manual/electrical optional

Mast Height m/ft: 6/7/8/9M optional

Mast Rotation: 359°

Wind Rating Speed: 100 km/h

Light Details

Type of Lights: MH or LED lamp optional

Lamp Wattage: 1000W

Number of lights: 4or6 optional

Light Output in KW: 4000/6000W optional

Total Lumens: 440000 or 660000 optional

Lumens per Watt: 110

Light Tilt: optional

Tower Dimensions

Width: 1400mm

Length: 2680mm

Height: 2500mm

Net weight: 750kg

Application scenario

Post-Disaster reconstruction

Outdoor engineering projects

Pile operations lighting

Outdoor construction sites

Mining areas

Ports and docks



Post-Disaster reconstruction areas

Emergency situations

our equipments are endowed with superior quality and high reputation. By now, these products have been exported to Australia Oceania, USA North America, Ecuador South America, Britain Earope, Nigeria Afria, Dubai Middle East etc.
