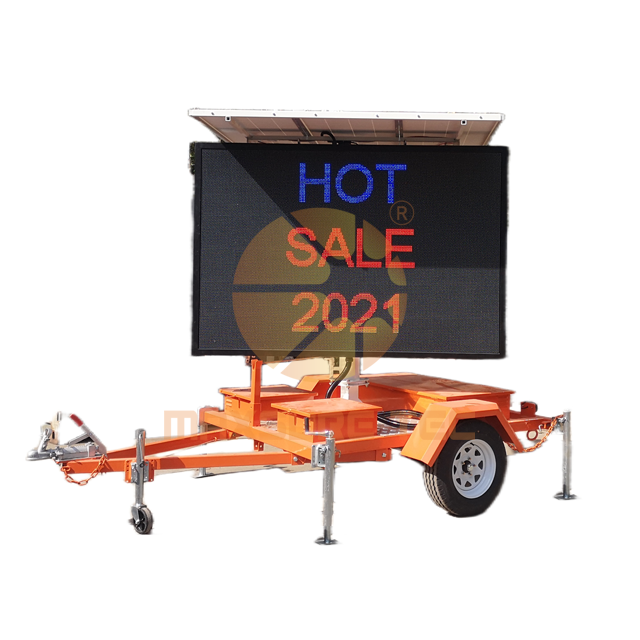

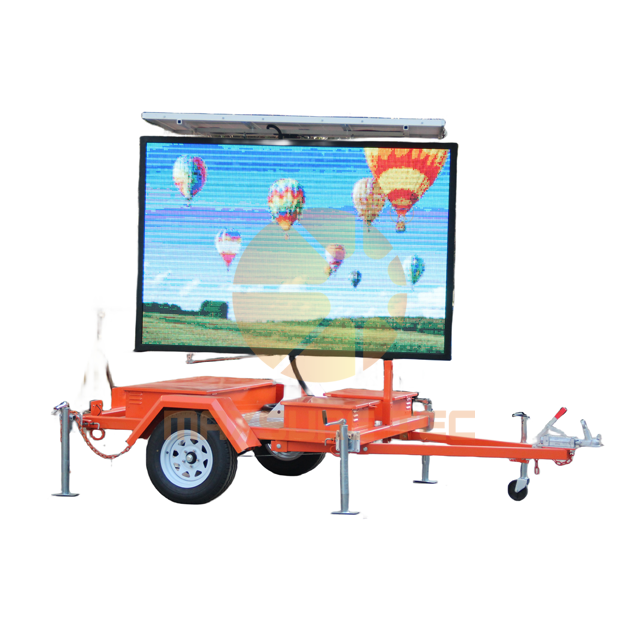

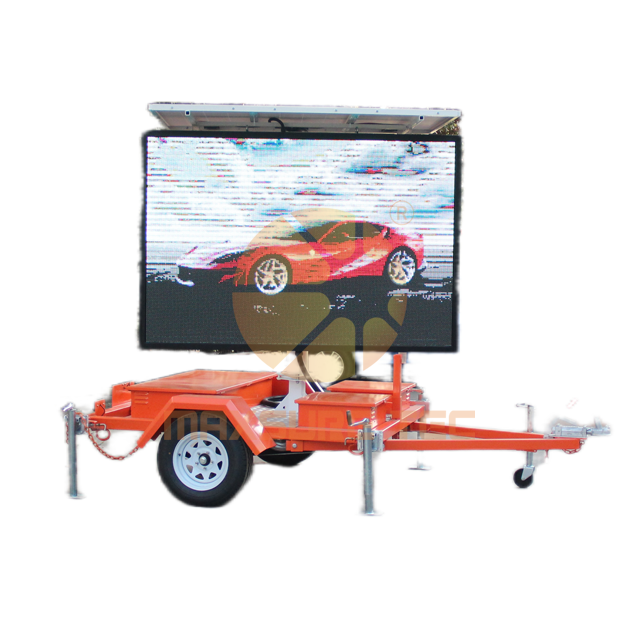

Solar Full Color Display Unit

Features

Average Working Time: From 75hr to 102hr depends on different using conditions

Power: DC24V

Wind Rating Speed: 100KPH

Protection Level: IP65

Basic Specifications

Display Board

Dislay Type: Full color

Pixel Pitch: 10mm optional

Viewing Area: 2260X1280mm

Display size: 2500*1300mm

Matrix: 256X128

Viewing Angle: 70degree

Brightness: 6000cd/㎡

Control System

Controller: Nova T3

Programming: Ethernet via laptop or WiFi or WEB remote optional

Display File Format: Text, picture, video

Solar panel

Solar System: Solar

Panel Wattage : 1200W

Panel Output: 1200W

Panel Material: Monocrystal silicon

Solar controller: 40A

Controller Model: MPPT

Battery

Model: CNJ250

Capacity: 1000AH

Voltage: DC 12V

Material: Colloid

Trailer

Operating Height: 4000mm

Mounting Maste Rotating: 360degree manual

Rotating Brake Type: Machinical

Draw Bar Length: 2200mm

Draw Bar Jack Type: 2000LBS with 6inch jockey wheel

Four Corner Jack Type: 15 inch, 3000LBS

Jack Details: 4 jacks can be retracted and lock in horizontal position for storage

Side outriggers: 3.00m span

Fenders: SPCC Steel

Wheel and Rim: Single axle,tire size 185/14C/14''

Trailer Suspension System: Steel plate spring

Brake: Towing brake

Coupling: 50mm ball quick release

Finishing: Galvanized and powder coated

Application Scenario

Product advertising

Company promotion

Market stall notices

Open-air music concerts

Sports events

Outdoor traffic safety equipment and outdoor engineering equipment products are important equipment to ensure people's safety during outdoor activities. These devices can not only improve people's safety in outdoor activities, but also improve the efficiency and quality of engineering construction. The following are our technical and service advantages.

Technical advantages:

1. Modern outdoor traffic safety equipment and engineering equipment adopt high-precision positioning technology, which can accurately locate the positions of personnel and equipment, improve safety and work efficiency.

2. These devices are equipped with intelligent monitoring systems, which can monitor the operating status and working environment of the devices in real time, detect problems in a timely manner, and take measures to ensure safety and stability.

3. These devices are made of high-strength materials, which have good wear resistance and corrosion resistance, and can be used for a long time in harsh outdoor environments.

4. These devices adopt high-efficiency and energy-saving technology, which can reduce energy consumption and operating costs, improve the service life and economic benefits of the equipment.

Service advantages:

1. providing customized services, designing and producing products that meet customer needs and requirements.

2. providing comprehensive after-sales service, including installation and debugging, training services, maintenance, etc., to ensure that customers can use the equipment normally and maintain its good condition.

3. Providing technical support, including equipment operation guidance, troubleshooting, maintenance and other services, to help customers solve problems during equipment use.

4. providing quickly respond to customer needs, promptly address customer issues and feedback, and ensure that customers can obtain a satisfactory service experience.

Our products have advanced technological advantages and high-quality service advantages, which can provide safe and efficient guarantees for outdoor activities and engineering construction. With the continuous development and progress of technology, these devices will continuously improve their performance and service level, bringing more convenience and safety assurance to people's outdoor life and engineering construction.
