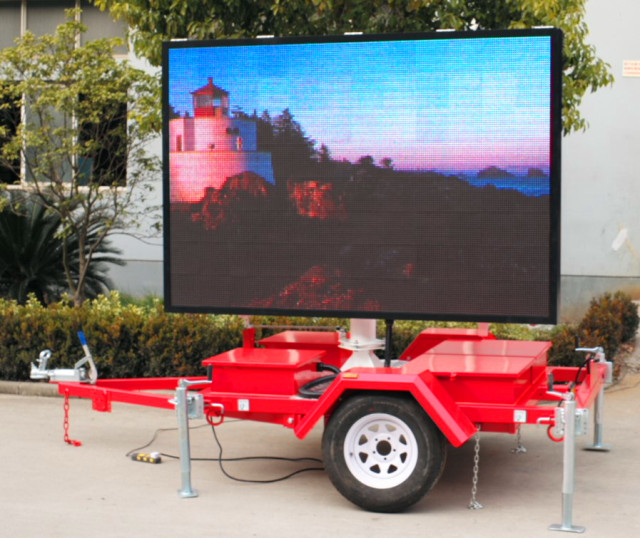

Hydraulic Lifting Full Color VMS Unit

Setup Towbar with special coupler can be towed by most vehicles.
Hydraulic lift allows one person to easily raise and lower the screen board Tower rotates 360 degrees for optimal positioning.
Single disk brake holds board in place during operation, while a cradle supports and holds board in travel position.
Operation Computer or laptop control.
Easy programming.
Animation and advertising program display.
Outriggers (extention lags) provides stability in high wind.
Control box can be locked to prevent unauthorized access.
Power system Optional gas or diesel generator.
Cooling fans protect sign cabinet from overheating.
Battery box can be locked to prevent unauthorized access.
Maintenance Individual character modules can be replaced easily.
Bolt-on steel fenders can be replaced if damaged
Availability:
Quantity:
  • TMV400HF
  • MAXSURETEC

Technique parameter


Display board pixel pitch: 10mm

pixel density: 10000 dot/sqm

pixel congriration: DIP 1R1G1B

IC: MBI5024

Brightness: 7000 nits

Viewing Angle : Horizontal 110 deg Vertical 50 deg

Minimum Viewing Distance: 10 meters

Brightness Control: 256 level

Gray scale: 16bit

Refresh frequency: 2000 Hertz

display size: 2.56m(W)*1.6m(H)

Driving mode: 1/4 scan

Input power frequency: 50 or 60 Hertz

Input Voltage: 110/220/240Volt

Blind spot rate: 1/10000

Lifetime at 50% brightness: 100,000 hours Ingress

Protection : IP65, Rear IP55

Operation temperature: 20 ℃ ~﹢50

Operation humidity: 10%~90

max power consumption: 6600W

average power consumption: 3300W

Control distance: CAT5 cable:100m;

Input interface : AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI, HDSDI

computer software: Windows (2000/XP/Vista/7



Power

AC 240V power



Trailer

L X W X H: 3.95X 2.05X 2.55M

Operating height:: 3.85M

Rotating degree for message panel: 360

Trailer has the brake system for the message panel, so it can stop on the desired position.

Four corner jack stands: 15 inch, 3000LBS

Draw bar jack stand (with 6inch jockey wheel): 2000LBS

Coupler: 5000LBS 50mm ball AS standard

Wheel type: 14 inch

Disc brake system for the wheel

Hydraulic function for operating message panel lift


Display board pixel pitch10mm
Pixel density10000 dot/sqm
Pixel congrirationDIP 1R1G1B
ICMBI5024
Brightness7000 nits
Viewing Angle Horizontal 110 deg Vertical 50 deg
Minimum Viewing Distance10 meters
Brightness Control256 level
Gray scale16bit
Refresh frequency2000 Hertz
Display size2.56m(W)*1.6m(H)
Driving mode1/4 scan
Input power frequency50 or 60 Hertz
Input Voltage110/220/240Volt
Blind spot rate<1/10000
Lifetime at 50% brightness100,000 hours Ingress
ProtectionIP65, Rear IP55
Operation temperature20 ℃ ~﹢50 ℃
Operation humidity10%~90%
Max power consumption6600W
Average power consumption3300W
Control distanceCAT5 cable:<100m
Input interfaceAV, S-Video, VGA, DVI, YPbPr, HDMI, SDI, HDSDI
Computer softwareWindows (2000/XP/Vista/7)
Power
 AC 240V power

Trailer

L X W X H3.95X 2.05X 2.55M
Operating height3.85M
Rotating degree for message panel360
Trailer has the brake system for the message panel, so it can stop on the desired position.
Four corner jack stands15 inch, 3000LBS
Draw bar jack stand (with 6inch jockey wheel)

2000LBS

Coupler5000LBS 50mm ball AS standard
Wheel type14 inch
Disc brake system for the wheel
Hydraulic function for operating message panel lift
