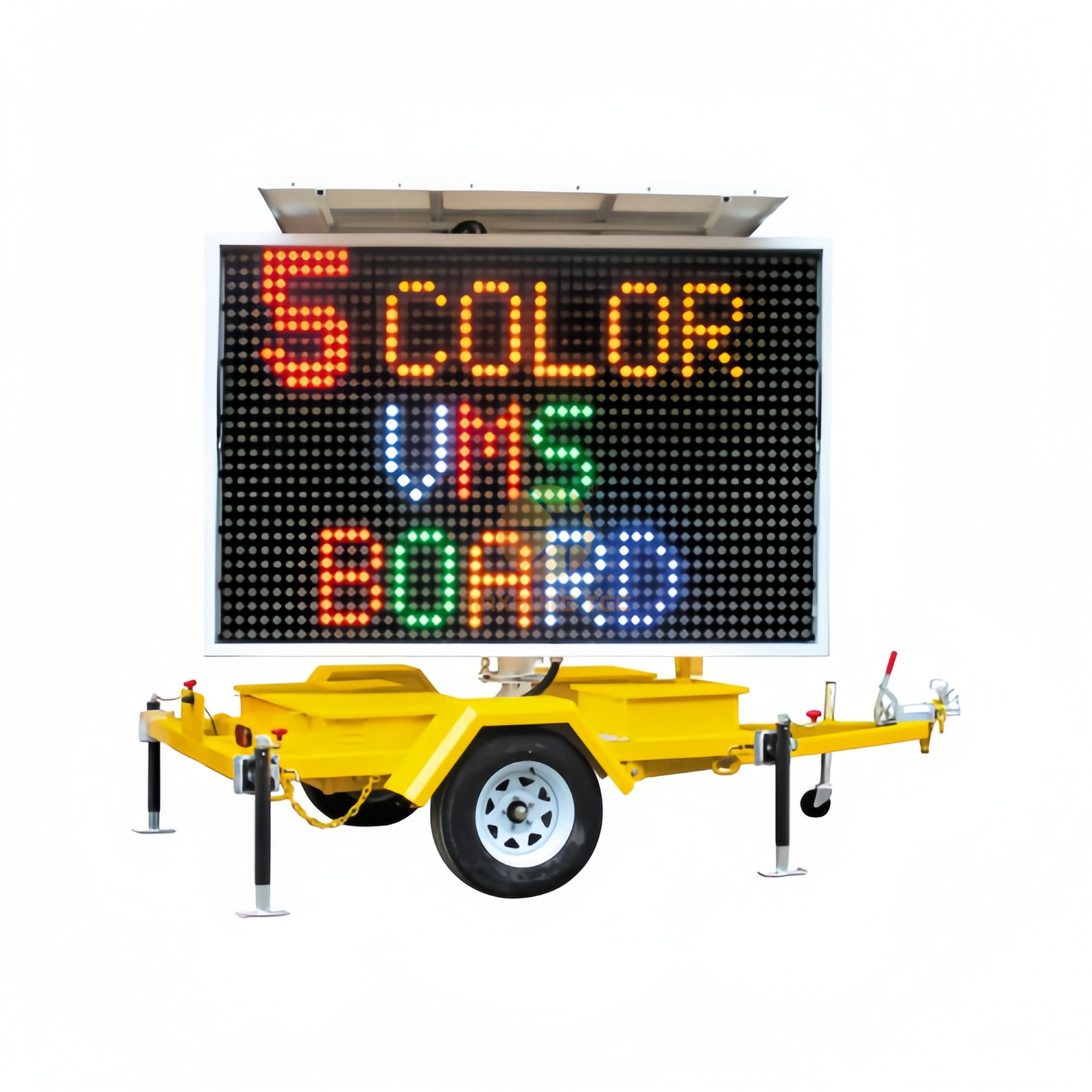

Multi Color VMS Trailer

Multi Color VMS Trailer - the ultimate solution for road safety warnings, traffic management, and effective communication in various settings such as construction sites, docks, warehouses, parking lots, and gas stations.

Designed with utmost professionalism, our Multi Color VMS Trailer offers a cutting-edge technology that ensures clear and impactful messages to enhance safety and streamline traffic flow. With its versatile features, this trailer serves as an indispensable tool for any organization or establishment in need of effective visual communication.

Equipped with multi-color LED panels, our VMS Trailer provides eye-catching displays that can be easily customized to suit specific needs. Whether it's displaying road safety messages, directing traffic, or notifying parking lot availability, this trailer ensures that your message is conveyed with utmost clarity, even in challenging lighting conditions.

Our VMS Trailer is built to withstand various weather conditions, ensuring reliable performance even in harsh environments. Its durable construction and sturdy design make it suitable for long-term use, guaranteeing a cost-effective investment for your organization.

With its user-friendly interface, our VMS Trailer allows for easy programming and scheduling of messages, ensuring prompt and accurate communication. Additionally, it can be easily transported and set up at different locations, providing flexibility and convenience.

Invest in our Multi Color VMS Trailer today, and experience a new level of road safety, traffic management, and effective communication. Trust in our professional-grade solution to enhance safety, streamline operations, and effectively convey important messages in any setting.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Maxsure Tec

Features

Setup

Towbar with special coupler can be towed by most vehicles

Hydraulic lift allows one person to easily raise and lower the message board

Tower rotates 360 degrees for optimal positioning

Single disk brake holds board in place during operation, while a cradle supports and holds board in travel position

Operation

Self-contained onboard computer or laptop wireless control

Easy programming

Preprogrammed text messages, symbols and graphics

Easily center each line of text

Multiple alphanumeric fonts make message clear and legible

Auto dimming function increase visibility and performance, saving energy.

Outriggers (extension legs) provides stability in high wind

Password protection limits access to control software

Control box can be locked to prevent unauthorized access

Power system

Energy-efficient operation results in long run times

Solar panels charge batteries automatically without intervention

Cooling fans protect sign cabinet from overheating

Battery box can be locked to prevent unauthorized access

Maintenance

Individual character modules can be replaced easily

Bolt-on steel fenders can be replaced if damaged.


Specifications

Trailer physical

L X W X H: 395 X 205 X 270CM

Operating height: 395CM

Rotating degree for message panel: 360

Draw bar length: A frame type 220CM

Trailer has the brake system for the message panel, so it can stop on the certain position.

For corner jack stands: 15 inch, 3000LBS

Draw bar jack stand (with 6inch jockey wheel): 2000LBS

Coupler: 5000LBS; 50mm ball

Wheel type: 14 inch

Disc brake system for the wheel

Hydraulic function for operating message panel lift

Manual Hydraulic Backup

3mm steal check plate

Display panel

Display Type: LED Full Matrix

Display Size: 255 X 171CM

Display Viewing Area: 240 X 160CM

Matrix: 48 X 28, 4 X 5mm LED s per pixel (Amber, Red, Green, White, Blue)

Enclosure: IP54 equivalent, front access

Screen: Non Glare UV polycarbonate

Photocell auto dimming

Controller and Programming

Programming options: SMS, RSR232 Serial direct connect, 4G web remote control & GPS

Software: Windows Compliant Free automatic software updates

Predefined Images: 90

Radar: Radar logging / remote removal, logging speed data / time traffic count

Large Storage up to 100 individual messages with various page sizes

Power

Voltage: 12v

Solar Panels: 540Watt Panels

Batteries: 400AH deep cycle (optional)

Solar charge controller

Operation on batteries/solar Indefinite under normal conditions


Application scenario

Road traffic safety warning

Road equipment and facility maintenance

Traffic emergency management

Supermarket and gas station notices
