Portable Solar Surveillance

Portable Solar Surveillance, designed to meet your outdoor monitoring needs with utmost efficiency and reliability. This professional-grade surveillance system is perfect for various applications, including temporary monitoring in remote mining areas, outdoor project maintenance monitoring, and theft prevention surveillance at construction material storage sites.

Equipped with cutting-edge technology, our Portable Solar Surveillance ensures that you have a vigilant eye on your surroundings at all times. Powered by solar energy, this system provides uninterrupted surveillance even in remote locations without access to electricity. Its portable design allows for easy installation and relocation, making it an ideal choice for temporary monitoring requirements.

With its advanced features, our Portable Solar Surveillance offers comprehensive monitoring solutions. Whether it's monitoring activities in wild mining areas, ensuring safety in outdoor construction projects, or preventing theft at material storage points, this system has got you covered. Its high-resolution cameras capture clear and detailed footage, enabling you to closely monitor every movement and activity.

Furthermore, our Portable Solar Surveillance is built to withstand harsh outdoor conditions. Its rugged construction ensures durability, making it suitable for long-term use in demanding environments. The system is equipped with weatherproof and tamper-resistant components, providing reliable performance even in extreme weather conditions.

Rest assured, our Portable Solar Surveillance adheres to the highest professional standards, guaranteeing top-notch security and peace of mind. Trust in its ability to provide round-the-clock monitoring, ensuring the safety and protection of your valuable assets.

Invest in our Portable Solar Surveillance today and experience the convenience, reliability, and professionalism it brings to your outdoor monitoring requirements. Stay in control of your surroundings with this state-of-the-art surveillance system.
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

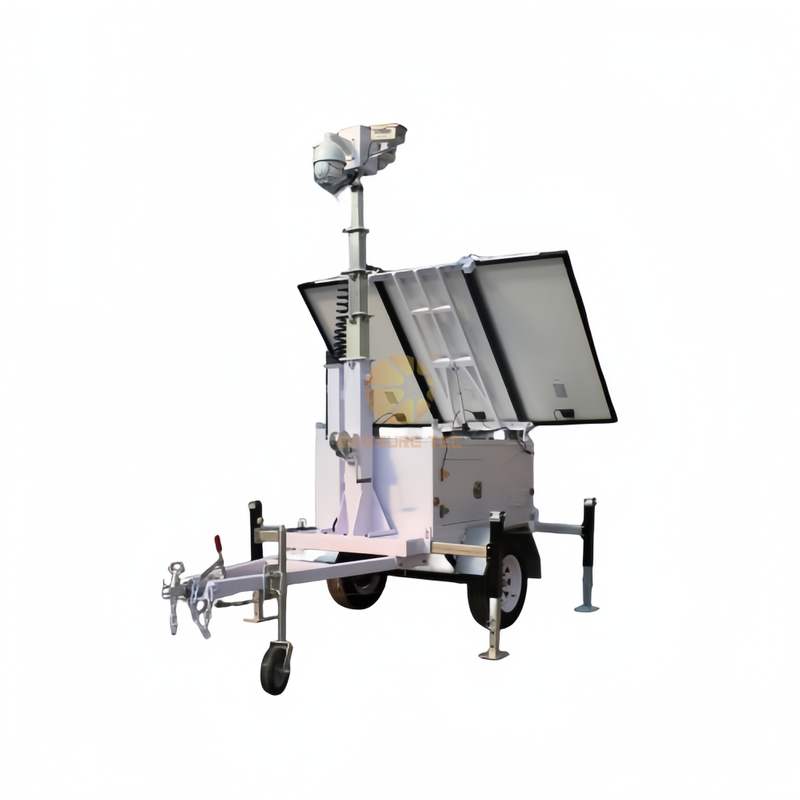

Solar surveillance system is a portable video surveillance system powered by batteries and charged by the sun. One or two PTZ cameras and wireless communications set the stage for remote video monitoring and control.

3*280W solar panels optional

4*150Ah/4*200Ah gel batteries, DC24V System

1*PTZ camera, 3*bullet cameras

Optional 6 to 9 meters manual/electric/ hydraulic mast

Single/Dual axle trailer optional

Basic Specifications

Unit Dimensions

Length: 3600mm

Witch: 1470mm

Height: 2810mm

Weight: 1100kgs

Surveillance Details

Camera Type: Network Camera

PTZ (optional): 2MP HD,16xoptical zoom, IR100,360 degree view

Bullet Camera (optional): 3MP HD,IR50m

NVR: 8-ch,2*3TB HDDs

POE Switch: Industrial Grade

4G Router: Optional

Mast Raise/Extension: Manual/Electric/Hydraulic

Mast Height(m): Optional

Coil Cable: 1*cat5e+3*2.5sqmm

Wind Rating Speed: 100km/h

Trailer Details

Trailer Type: Single/dual Axle optional

Tire and Rim Size: 15"

Stabilizer Supports: 4xManual

Drawbar: A Frame

Tow Hitch: 50mm Ball/70mm Ring


Solar Panel(W): 3*280W (solar tilting/adjustable angle)

PTZ Camera: P0 (No PTZ) / P1(1PTZ)

Bullet Camera: B(0/1/2/3) / B(1/2/3/4) MM

Mast(m): (manual mast)6/7/9, (electric mast)6/7.5/9, (hydraulic mast)6/7.5/9

Battery: 4*150Ah/4*200Ah/4*150Ah


Application Scenario

Temporary surveillance in remote mining areas

Outdoor construction project monitoring and maintenance

Theft prevention at outdoor material storage sites

Private properties

our equipments are endowed with superior quality and high reputation. By now, these products have been exported to Australia Oceania, USA North America, Ecuador South America, Britain Earope, Nigeria Afria, Dubai Middle East etc.
