Maxsure Tec
Features
3*330W solar panels optional
4*200Ah/6*150Ah/6*200Ah gel batteries, optional , DC24V system
1*PTZ camera,3*bullet cameras
Optional 6 to 9 meters manual/electric/hydraulic mast
Single axle trailer with Australial Europe/North America standard
TECH SPECS: | ||||||||||||||||||||||||
TOWER | DIMENSIONS | SURVEILLANCE FIXTURE DETAILS | ||||||||||||||||||||||
Length: | 4100mm | Camera Type: Network Camera | ||||||||||||||||||||||
Width: 1880mm | Camera Style: PTZ Camera,Bullet Camera | |||||||||||||||||||||||
Height: | 2900mm | PTZ: 2MP HD,16×optical zoom, | ||||||||||||||||||||||
Weight: | 1430kg | IR100m,360°view | ||||||||||||||||||||||
TRAILER DETAILS | Bullet | Camera: | 3MP HD,IR50m | |||||||||||||||||||||
NVR: | 8-ch,2*3TB HDDs | |||||||||||||||||||||||
Trailer Type: | Single Axle | |||||||||||||||||||||||
Tire and Rim Size: | 15" | POE Switch: Industrial Grade | ||||||||||||||||||||||
Stabalizer Supports:4xManual | 4G Router: Optional | |||||||||||||||||||||||
Drawbar: | A Frame | Mast Raise/Extension:Manual/Electric/Hydraulic | ||||||||||||||||||||||
Tow Hitch: | 50mm Ball/70mm Ring | Mast | Height(m): | Optional | ||||||||||||||||||||
Mud Guard/Wheel Chock: | Special Design | Coil | Cable: | 1*cat5e+3*2.5sqmm | ||||||||||||||||||||
Backup Generator: | Optional | Wind Rating Speed: 100km/h | ||||||||||||||||||||||
Working Temperature(℃): | -35~60 | |||||||||||||||||||||||
SELECTION TABLE: | ||||||||||||||||||||||||
Code Solar Panel PTZ Camera Bullet Camera Mast(m) Battery Generator Trailer Standard | ||||||||||||||||||||||||
VTS900B-C | 3*330W (adjustable angle) | P0 (No PTZ) | B (1/2/3/4/5/6) | MM (manual mast) | 6 | B800(4*200Ah) B900(6*150Ah) B1200(6*200Ah) | G3(gasoline 3kW) D3(diesel 3kW) D5(diesel 5kW) | AU/ US/ EU | EB(eletric brake) MB(mechanical brake) | |||||||||||||||
7.5 | ||||||||||||||||||||||||
9 | ||||||||||||||||||||||||
EM (electric mast) | 6 | |||||||||||||||||||||||
7.5 | ||||||||||||||||||||||||
P1 (1 PTZ) | B (0/1/2/314/5) | |||||||||||||||||||||||
9 | ||||||||||||||||||||||||
HM (hydraulic mast) | 6 | |||||||||||||||||||||||
7.5 9 |
Application Scenario

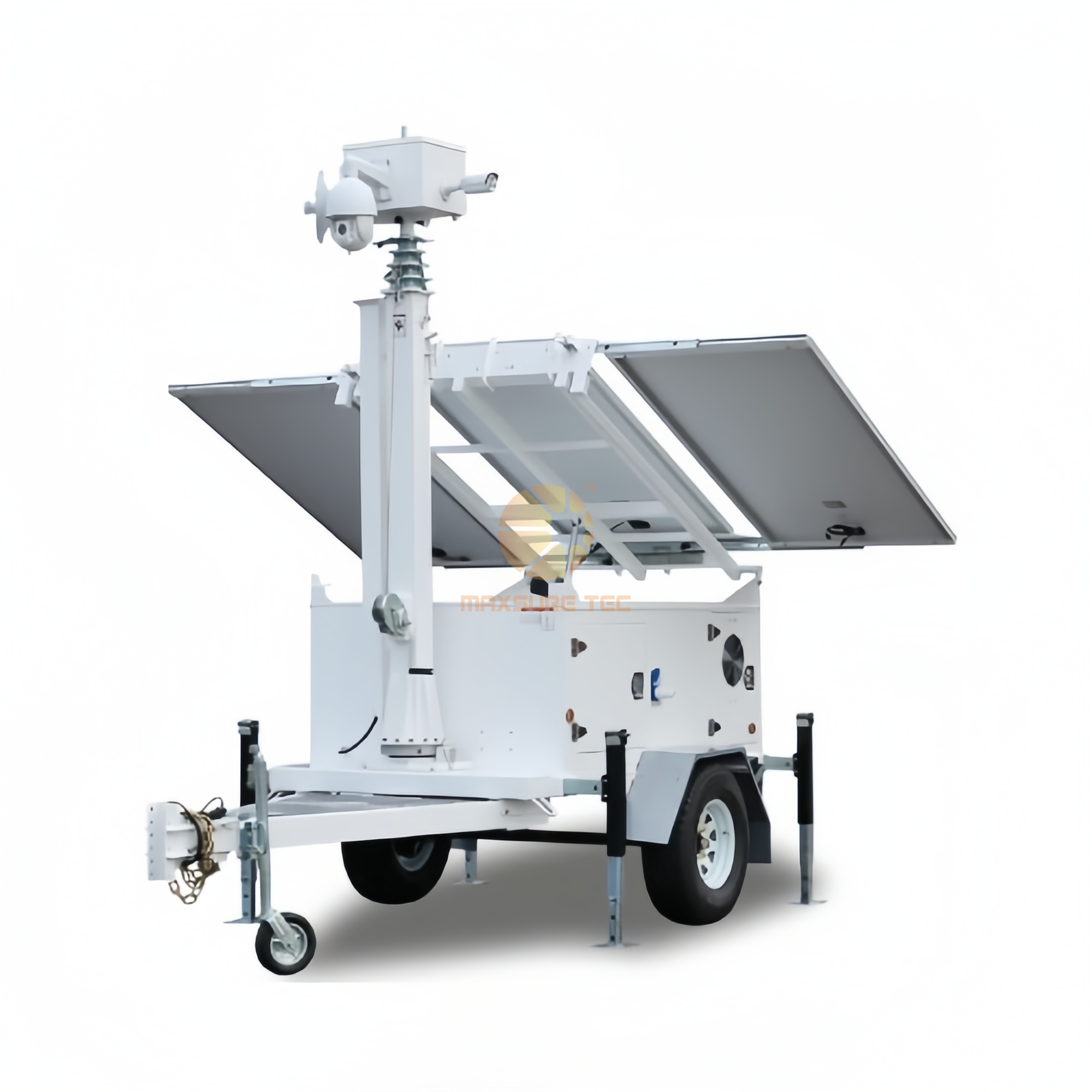

he Solar Powered Trailer Mount Surveillance Camera is specifically designed for monitoring security in warehouses and docks. Its versatile mounting options allow it to be easily installed at various locations, ensuring comprehensive coverage of the entire facility. The camera's weatherproof construction protects it from environmental elements, making it suitable for both indoor and outdoor surveillance. With its solar-powered operation, it eliminates the need for external power sources, ensuring uninterrupted surveillance even during power disruptions. The camera's advanced features, including high-resolution imaging and wide-angle lens, enable clear and detailed monitoring of loading docks, storage areas, and inventory movement. Additionally, its intelligent motion detection and remote monitoring capabilities provide real-time alerts, allowing prompt response to any potential security threats or unauthorized activities.
Outdoor traffic safety equipment and outdoor engineering equipment products are important equipment to ensure people's safety during outdoor activities. These devices can not only improve people's safety in outdoor activities, but also improve the efficiency and quality of engineering construction. The following are our technical and service advantages.
Technical advantages:
1. Modern outdoor traffic safety equipment and engineering equipment adopt high-precision positioning technology, which can accurately locate the positions of personnel and equipment, improve safety and work efficiency.
2. These devices are equipped with intelligent monitoring systems, which can monitor the operating status and working environment of the devices in real time, detect problems in a timely manner, and take measures to ensure safety and stability.
3. These devices are made of high-strength materials, which have good wear resistance and corrosion resistance, and can be used for a long time in harsh outdoor environments.
4. These devices adopt high-efficiency and energy-saving technology, which can reduce energy consumption and operating costs, improve the service life and economic benefits of the equipment.
Service advantages:
1. providing customized services, designing and producing products that meet customer needs and requirements.
2. providing comprehensive after-sales service, including installation and debugging, training services, maintenance, etc., to ensure that customers can use the equipment normally and maintain its good condition.
3. Providing technical support, including equipment operation guidance, troubleshooting, maintenance and other services, to help customers solve problems during equipment use.
4. providing quickly respond to customer needs, promptly address customer issues and feedback, and ensure that customers can obtain a satisfactory service experience.
Our products have advanced technological advantages and high-quality service advantages, which can provide safe and efficient guarantees for outdoor activities and engineering construction. With the continuous development and progress of technology, these devices will continuously improve their performance and service level, bringing more convenience and safety assurance to people's outdoor life and engineering construction.
