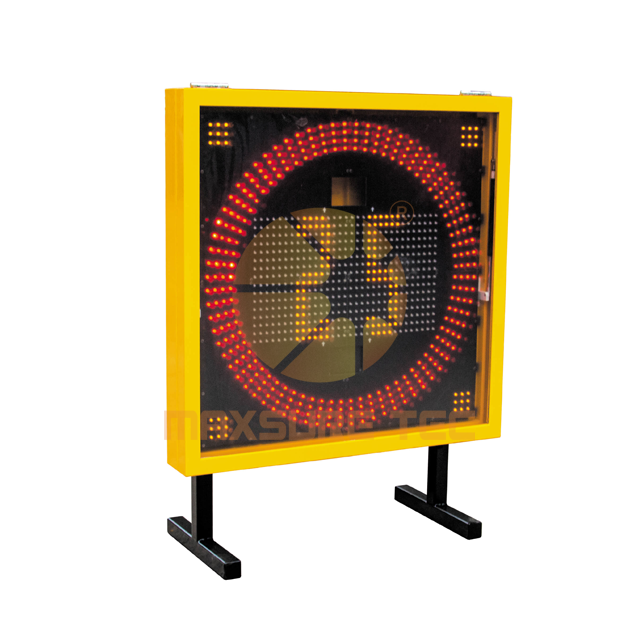

Radar Speed Sign

Portable Radar Speed Sign, a professional solution for temporary road traffic management. This state-of-the-art device is designed to enhance safety and enforce speed limits in various temporary traffic control scenarios.

Equipped with advanced radar technology, our Portable Radar Speed Sign accurately detects and displays the speed of oncoming vehicles. This allows for effective speed monitoring and helps to create awareness among drivers, ultimately reducing the risk of accidents and promoting safer roads.

With its portable and lightweight design, this speed sign can be easily transported and set up in different locations as needed. Whether it's a construction site, a school zone, or any other temporary traffic management situation, our Portable Radar Speed Sign is the ideal tool to ensure compliance with speed regulations.

The user-friendly interface of our Portable Radar Speed Sign allows for quick and hassle-free operation. Its clear LED display provides highly visible speed readings, ensuring that drivers can easily see and respond to their current speed. Additionally, the sign can be customized to display specific messages or warnings, further enhancing its effectiveness in traffic management.

Our Portable Radar Speed Sign is built to withstand various weather conditions, ensuring reliable performance even in challenging environments. Its durable construction and long-lasting battery life make it a cost-effective solution for temporary traffic control needs.

Invest in our Portable Radar Speed Sign and take control of temporary road traffic management with professionalism and efficiency. Promote safer roads, reduce accidents, and ensure compliance with speed limits. Trust in our reliable and technologically advanced solution to enhance traffic safety in any temporary traffic control scenario.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Maxsure Tec

Features

High brightness LED display

Automatic brightness adjustment

Local & remote (optional) programming

Long life cycle

Durable powder coated enclosure resists elements

Lockable & secure enclosure

Numerous sizes


Basic Specifications

LED sign

Display size: 800*800mm or 600*600mm optional

Display type: 3 digital display

Voltage: DC12V


Radar

Frequency: 24.15GHz

Antenna angle: 10°×14°

Numbers of lanes covered: 2~4

Speed range: (5~400) km/h

Speed accuracy: (-4~0) km/h

Detection range: 10~200m

Vehicle flow information: Support

Update cycle: 16ms

Direction: Approaching, receding and both

Remote software update: Support

Interface: Full duplex RS232 or half duplex RS485

Power: (8.5~26) VDC

Operating power: <2w

Operating temp: -40ºC~85ºC

Operating humidity: 5%~95%

IP grade: IP67

Size: 116 X 90 X 40MM


Power

100AH battery 100W solar panel optional


Control

Both 4G remote control and pc control on site control


Mounting frame

Frame material: MIG-welded, 30mm square steel tubing, can be customized

Finishing: powder coated and oven baked


Application scenario

Temporary road ontrol

Emergency traffic response

Road maintenance and repair

Temporary traffic control
