Maxsure Tec
Features
High brightness LED display
Automatic brightness adjustment
Local & remote (optional) programming
Long life cycle
Durable powder coated enclosure resists elements
Lockable & secure enclosure
Numerous sizes
Basic Specifications

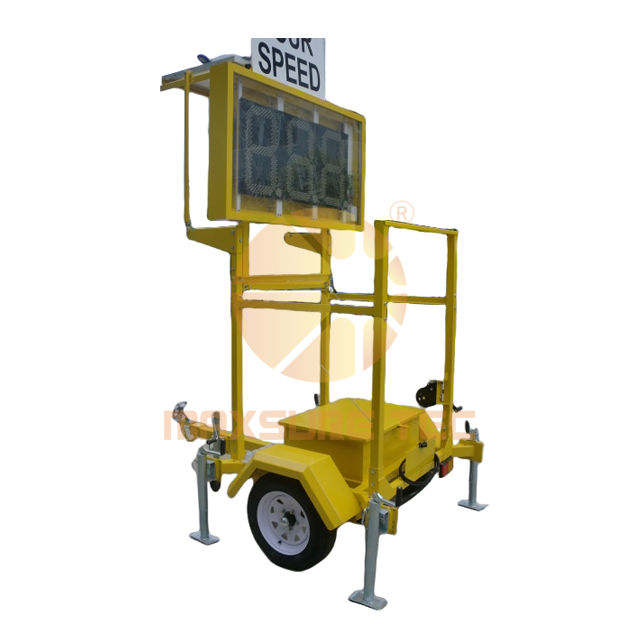

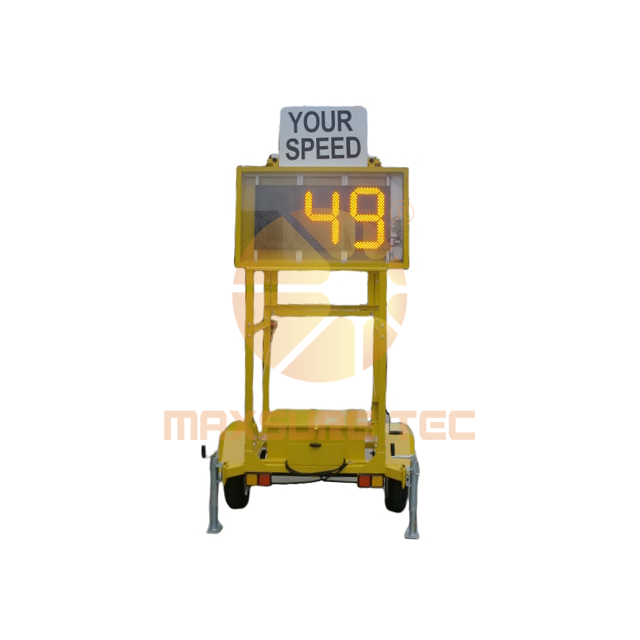

LED Speed Sign Board
Display Size: 145X 85CM
View area: 114 X 55CM (THREE DIGIT)
LED viewing angle: 15°
LED size: 5MM
Displaying colour: amber or red
Power: 12v
Radar
Power: 12v
Max current: 1A Detecting Accuracy: ±0.1km/h
Radar Frequency: K BAND(24G)Detecting range: ≤10~500m
Responsible time: ≤200ms
Max speed display: 399 km/h
Program
Data logging
Power
200AH deep cycle battery optional
75 watts solar panel optional
Solar regulator
Trailer Physical Specification
L X W X H: 230X 1460X 215CM
Operating height: 310CM
Draw bar length: 120CM
Draw bar jack stand (with 6inch jockey wheel): 2000LBS
Coupler: 3000LBS
Wheel type: 13 inch
Application Scenario
Traffic Control during Road Maintenance
Emergency Traffic Management
Temporary Traffic Control at Events
School Zone Traffic Management
Construction Site Safety
