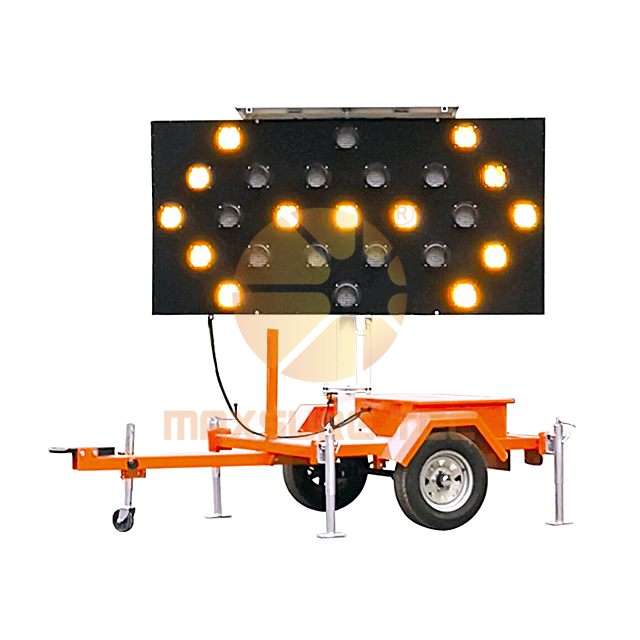

Trailer Mount C Size Arrow Board

Solar powered trailer mount arrow board, a cutting-edge solution designed to enhance traffic management and ensure utmost safety on the roads. This professional-grade product combines advanced technology with unparalleled reliability, making it an indispensable tool for any road construction or maintenance project.

With its highly visible and dynamic LED display, our arrow board provides clear and concise traffic instructions, guiding motorists and pedestrians with utmost precision. Whether it's directing traffic flow, warning of potential hazards, or indicating lane closures, this state-of-the-art device ensures optimal road safety and efficient traffic control.

Equipped with a solar power system, our arrow board operates autonomously, harnessing the sun's energy to power its operations. This eco-friendly feature not only reduces carbon emissions but also eliminates the need for external power sources, making it a cost-effective and sustainable choice for any road management project.

Designed for easy installation and transportation, our trailer mount arrow board offers unparalleled versatility. Its compact and lightweight design allows for effortless maneuverability, ensuring quick deployment and relocation as per project requirements. Additionally, the sturdy construction and weather-resistant materials guarantee durability even in the harshest conditions.

Trust our solar powered trailer mount arrow board to revolutionize your road management efforts. With its exceptional features, including traffic guidance, safety alerts, and efficient road control, this product is the epitome of professionalism and reliability. Invest in this innovative solution today and experience unmatched efficiency and safety on every road project.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Features

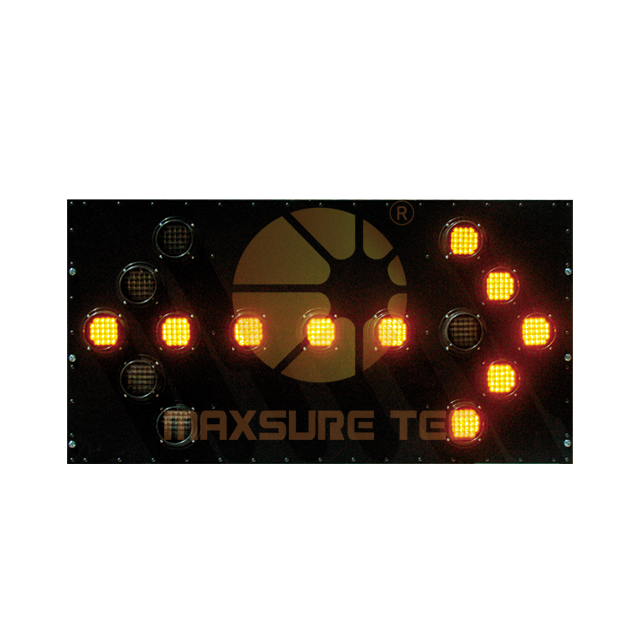

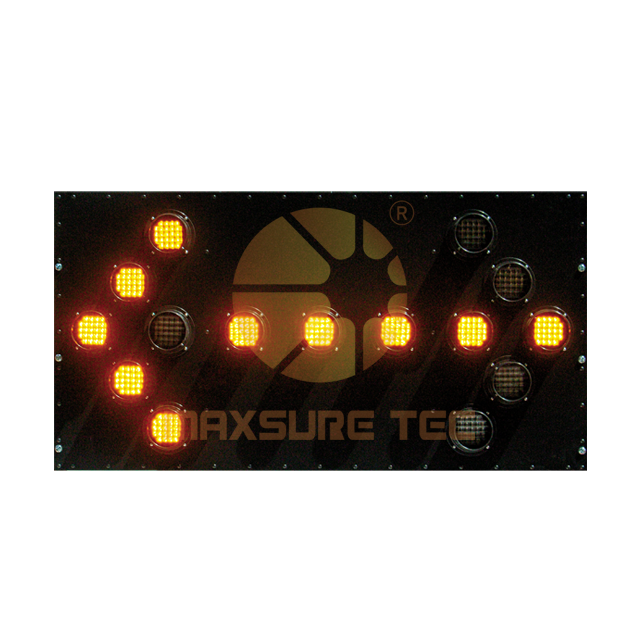

High-output amber LEDs are highly legible

Choose 15 lamps with 4, 5,or 7 arrow display modes or 25 lamps with 12 arrow display modes

Solar powered

Environmentally safe operation

Easy to operate and maintain

Hand winch allows one person to raise board

Locking device holds arrow board in place while operating and in travel position

Weather-resistant and lockable control box

Arrow display has automatic dimming

Flashing rate of 30 to 40 per minute

Durable powder-coat finish resists the elements


Basic Specifications

Arrow board

Panel size: 2400MM wide x 1200MM high

Panel construction: all aluminum with welded frame

Panel finish: matte black baked emanel finish

Number of lamps: 25

Lamp construction: LED in unbreakable sealed polycarbonate housing

Rear panel indicator: 2 or 3

Lifting mechanism: 1200lb capacity automatic brake winch and cable


Controller

Controller circuitry: ultra low power solid state

Lamp patterns: all standard 25 lamp flashing and sequential

Lamp flash rate 30 to 50 per minute optional

Lamp dimming: manual and automatic optional

Lamp dimming ratio: 50% fully dimmed at approximately five footcandles

Low voltage disconnect: 10.70volts

High voltage disconnect: 15.10volts


Energy Source

Operating voltage: 12 volts DC

Battery capacity: 400AH

Battery status indicator: displays full charge,normal and low battery condition

Solar array construction: top mounted solar panels in aluminum frame

Solar array power output: 50 or 70 watts field upgradable

Solar charge controller: fully automatic,temperatures, comendated


Trailer physical

Length (with draw bar): 2.85M

Width (with fender): 1.94M

Height (operating): 3.45M

Height (traveling): 2.35M

Weight: 520KG

Trailer jack: 3000LB

Draw bar jack: 2000LB

Coupler: 2000KG


Application

Trailer Mount C Size Arrow Board is an essential traffic control device designed to provide clear and effective guidance to motorists in various situations. This versatile product finds its application in a wide range of scenarios, including traffic guidance, road maintenance alert, and road traffic facility maintenance warning.
