Hydraulic Lifting Type Solar Power Arrow Board

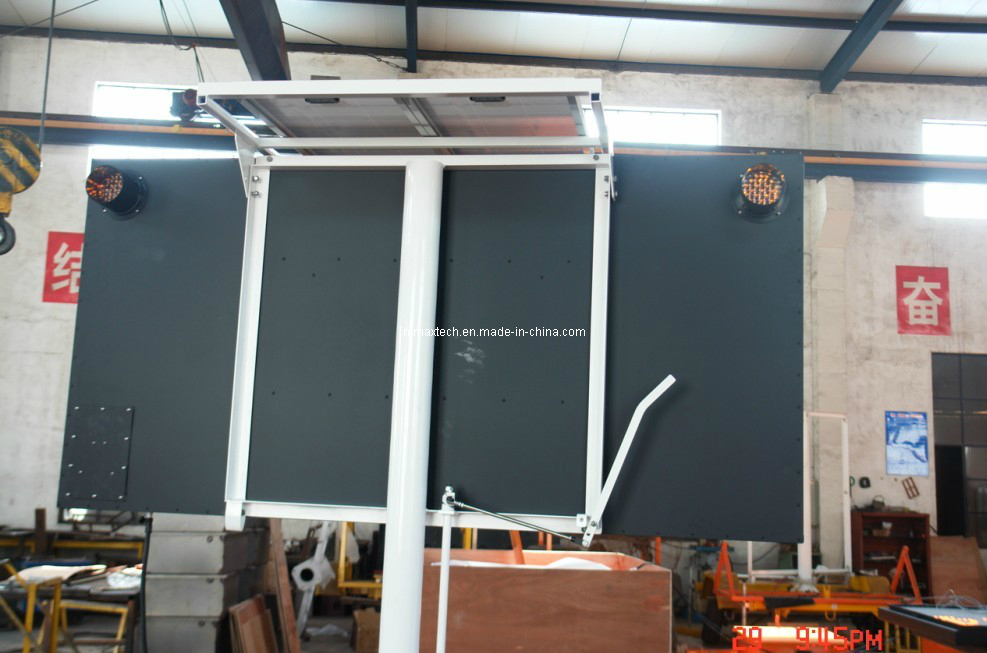

This trailer mounted arrow board is advanced on the basis of traditional one, and falls into TA15H and TA25H models. This customer-proven message sign employs high-efficiency LED lamps with superior legibility and benefits environment without sacrificing performance. Rugged and dependable design offers easy maintenance. Lifting the display panel is convenient because we adopt the electric actuator. 1500 to 2000m viewing distance provides outstanding visibility, which is suitable for applications such as traffic congestion, work zones and mining areas, etc.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Feature

Standard tow hitch can be towed by most vehicles.

360° rotation of display panel offers optimal positions.

Hydraulic mast and safety brake hold the trailer mounted arrow board in place all the time. The braces on the trailer support the sign in travel condition.

Mechanical push buttons is durable and practical.

Four extensible jacks at each corner of trailer help to maintain stability and offer diverse heights to meet application needs.

Individual LED display module is easy to replace.

Standard tire size delivers easy replacement.



Specification

Model

TA15H

TA25H

Trailer structure

MIG (metal inert gas) welding, high-end steel tube compliant to Chinese standard

Board material

Aluminum

Housing

Powder coated or zinc plated and powder coated

Gross axle weight ratings

1000 kg

Wheel size

13cun (about 17 inches)

Leaf spring

Open-eye or double-eye high rigidity spring

Number of lamp

Front: 15, back: 2

Front: 25, back: 2 or 3

Flashing mode

4

12

Arrow size

2400 × 1200mm

Battery

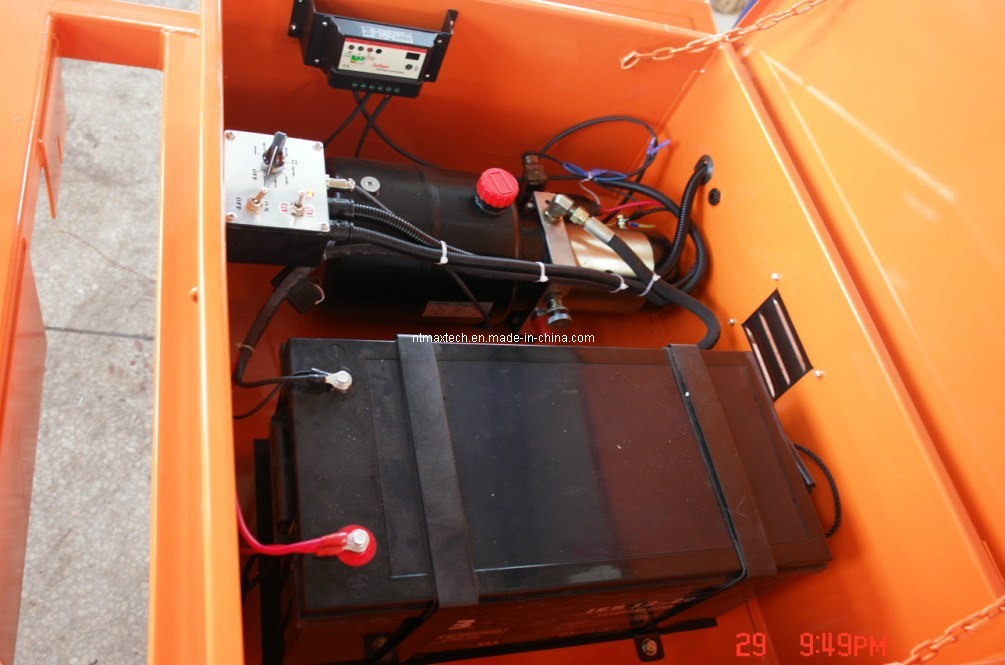

Standard one DC 200AH or 250AH 12V sealed battery with rubber case.
Battery capacity: 200AH to 250AH optional

Solar panel

Standard one 75W piece or two 50W pieces optional

Lifting capacity of hydraulic pump

1000 kg



Applications

Traffic control

Construction sites

Road work zones

Enmerency responce

Special events

Many more
