Features
Promotion of events, Sporting, Festival etc.
Product advertising, Car ward, Property Development etc.
Full color display board
Live Internet communication
Low power comsumption with pure solar powered
Long working time
Setup
Towbar with special coupler can be towed by most vehicles
Hydraulic lift allows one person to easily raise and lower the screen board
Tower rotates 360 degrees for optimal positioning
Single disk brake holds board in place during operation, while a cradle supports and holds board in travel position
Operation
Computer or laptop control
4G remote control
Easy programming
Animation and advertising program display
Outriggers (extention lags) provides stability in high wind

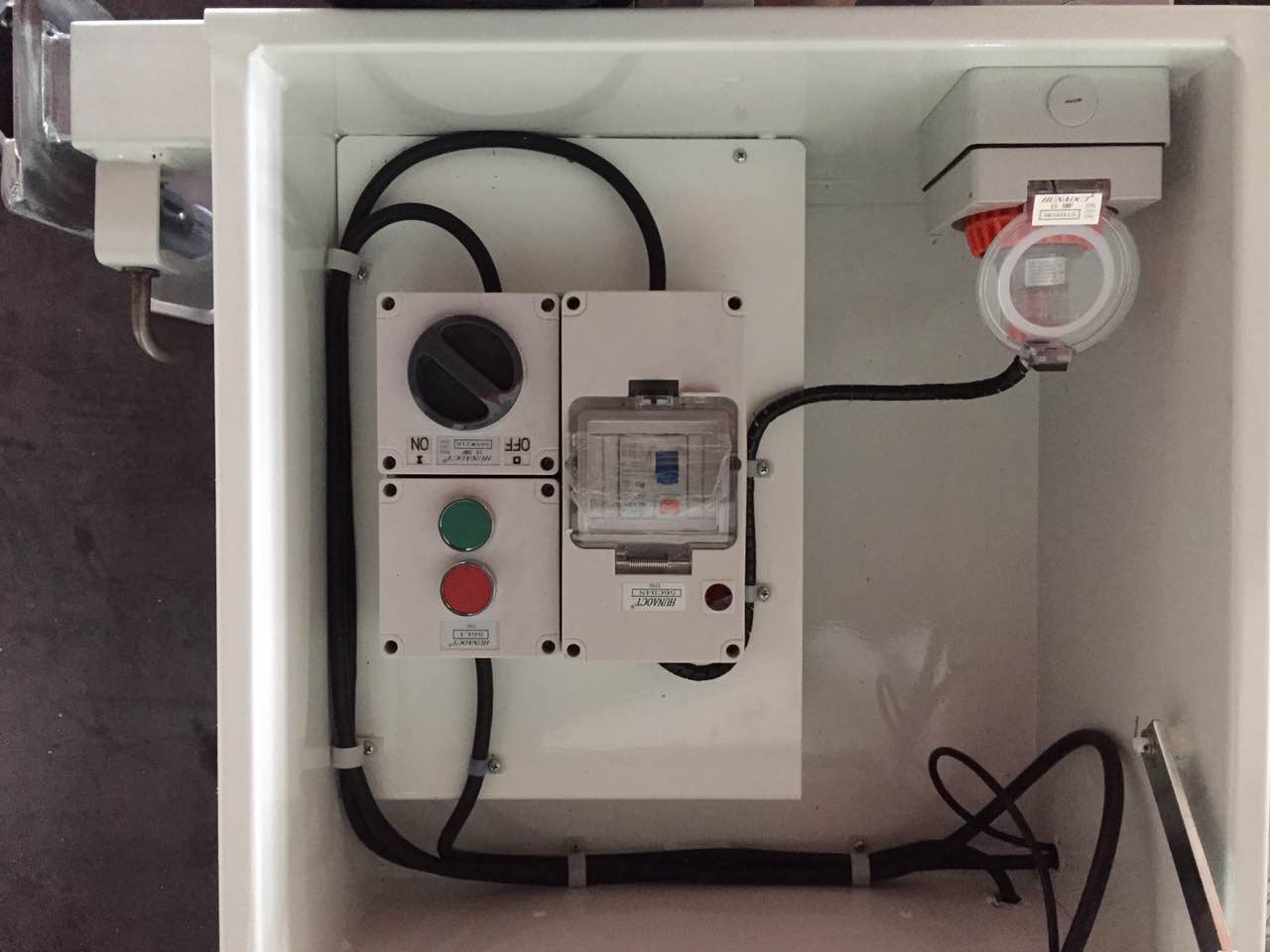

Control box can be locked to prevent unauthorized access
Power system
Pure solar power is used instead of traditional generators which make emission/noice and always disturb the public
Cooling fans protect sign cabinet from overheating
Battery box can be locked to prevent unauthorized access
Maintenance
Pure solar powered maintaenance free
No need refilling fuel cost free
Individual character modules can be replaced easily
Bolt-on steel fenders can be replaced if damaged
Specifications
| Display | Control system | Power | Trailer |
| Display Type: Full Color Pixel pitch: 10mm Display size: 2260X1540mm Display Viewing Area:2160X1440mm Matrix: 216X144 Viewing angle: 70 degree Brightness: 6000cd/M2 IP Class: IP65 | Controller: Nova T3 Programming : Ethernet via laptop or WiFi or WEB remote optional Display file format: text, picture, video etc | Voltage: DC24V Solar Controller: MTTP 30A Solar Panel: 540W optional Battery: 400AH optional | Length: 3600mm Width: 1640mm Height: 2700mm Operating height: 4000mm Weight: 1000kg Tyre: 185R14C Coupling:Quick Release, 50mm ball Lifting: Hydraulic lift system |
