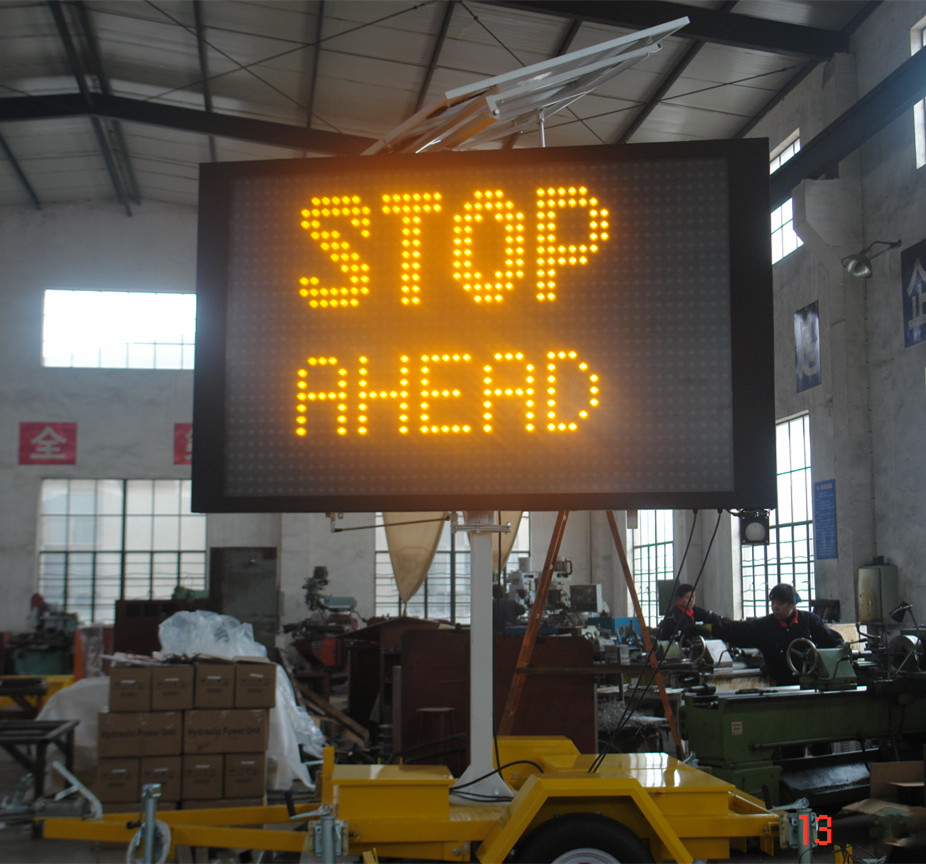

Portable Traffic Notice Message Traffic Sign Electric Hydraulic Lift System Easy Operate

Product DescriptionPhotosSpecificationsOur Advantages1. All of our product photos we presented on the web were taken at our workshop or provided by our customers, they ...


SetupOperationPower systemMaintenance
Towbar with special coupler can be towed by most vehicles

Hydraulic lift allows one person to easily raise and lower the message board

Tower rotates 360 degrees for optimal positioning

Single disk brake holds board in place during operation, while a cradle supports and holds board in travel position
Self-contained onboard computer or laptop wireless control

Easy programming
Preprogrammed text messages, symbols and graphics

Easily center each line of text

Multiple alphanumeric fonts make message clear and legible

Auto dimming fuction increase visibility and performance

Outriggers (extention lags) provides stability in high wind

Password protection limits access to control software

Control box can be locked to prevent unauthorized access
Energy-efficient operation results in long run times

Solar panels charge batteries automatically without intervention

Cooling fans protect sign cabinet from overheating

Battery box can be locked to prevent unauthorized access
Individual character modules can be replaced easily

Bolt-on steel fenders can be replaced if damaged.


Display boardControl and programingPowerTrailerExtra options
Display Type: LED Full Matrix
Display Size: 255 x 170CM
Display Viewing Area: 246 x 162CM
Matrix: 48 x 28, 5mm LED s per pixel
Display color: amber
Enclosure: IP54 equivalent, front access
Screen: Non Glare UV polycarbonate
Photocell auto dimming
Programming options: SMS, RSR232 Serial direct connect, 4G Internet remote control, GPS tracking
Software: Windows Compliant Free automatic software updates
Predefined Images: 90
Radar: Radar logging / remote removal, logging speed data / time traffic count
Large Storage up to 100 individual messages with various page sizes
Voltage: 12V
Power of solar panels: 450watt or 540 watts optional
Batteries: 400AH or 600AH deep cycle optional
Solar charge controller: MPPT
Operation on batteries/solar Indefinite under normal conditions
L X W X H: 395 X 205 X 270CM
Operating height: 395CM
Rotating degree for message panel: 360
Draw bar length: A frame type 220CM
Trailer has the brake system for the message panel, so it can stop on the certain position.
For corner jack stands: 15 inch, 3000LBS
Draw bar jack stand (with 6inch jockey wheel): 2000LBS
Coupler: 5000LBS; 50mm ball
Wheel type: 14 inch
Disc brake system for the wheel
Hydraulic function for operating message panel lift
Manual Hydraulic Backup
3mm steal check plate
PC (industrial touch monitor tablet computer) for on site programming
Speed radar
Battery charger
Security wheel lock
Solar tilting
