Features

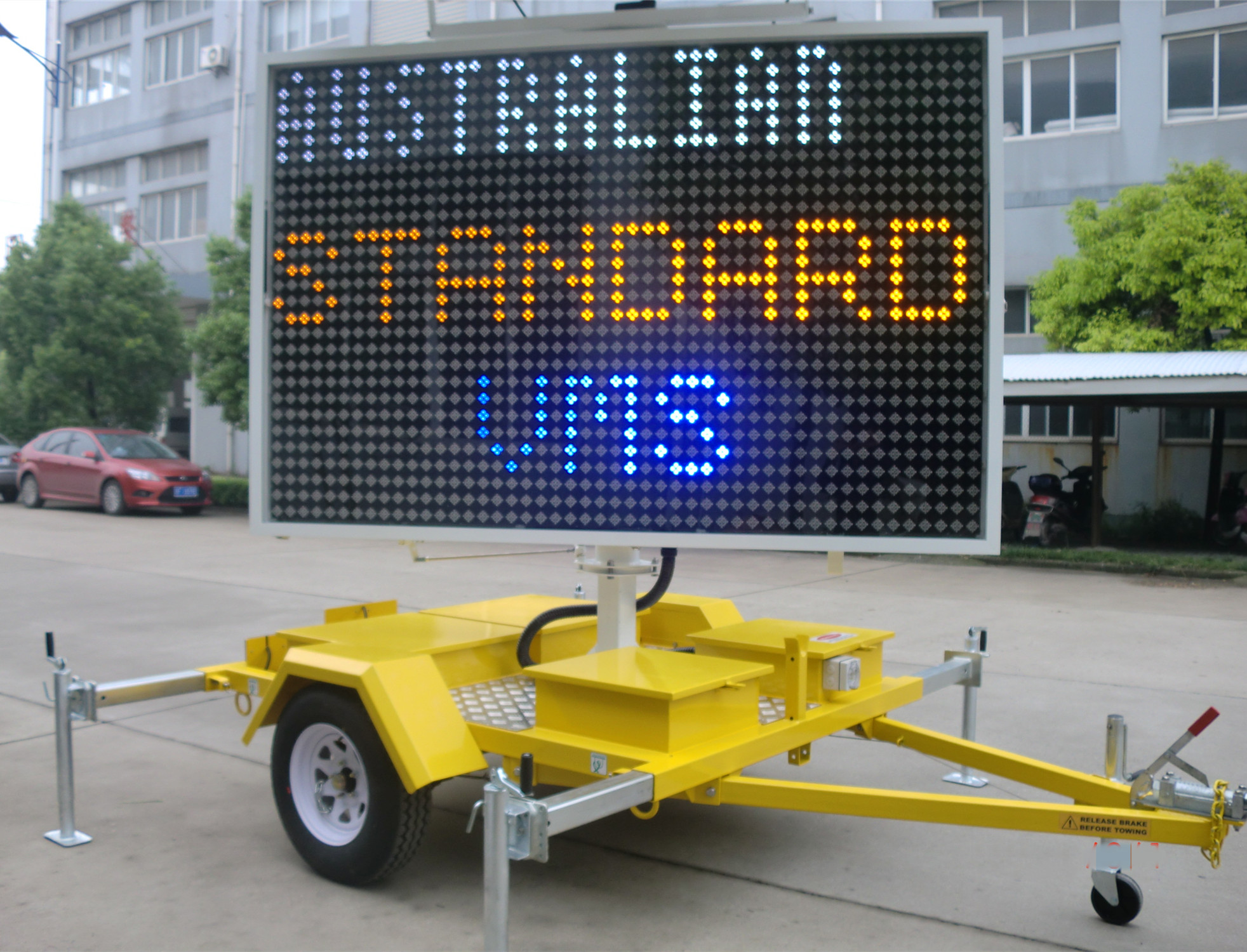

Solar powered portable variable message sign
Colour: amber; red; green; white
Super bright LED's
Auto dimming reduces power comsumption
Galvanised and powder coated trailer
Hydraulic lifting mast
Internet based remote control
Client software programing
Software GPS tracking
Applications
Advanced warning to motorists of roadworks/conditions
School, Pedestrian or Roadwork Zones
Notification of road closures or detours
Used with Radar to display traffic speed
Promotion of Events, e.g Sporting, Festival
Product Advertising, e.g Car Yard, Property Development
Specifications
| Display | Controller and Programming | Power | Trailer |
| Display Type: LED Full Matrix Display Size: 2.6*1.7M Matrix: 48 x 28, 5mm LED s per pixel ultra bright led LED colour: TMV400HS: single amber colour TMV400HC4: 4colour (red, green, white ,amber) TMV400HC5: 5colour (red, green, white ,amber, blue) Enclosure: IP54 equivalent, front access Screen: Non Glare UV polycarbonate Photocell auto dimming | Programming: computer onsite controler and wireless remote control, GPS tracking Predefined Images: 100 Large Storage up to 100 individual messages with various page sizes | Voltage: 12V Solar Panels: TMV400HS: 450watt panels optional TMV400HC4: 540watt panel optional TMV400HC5: 540watt panels optional Batteries: 400AH deep cycle gel battery Solar charger Controller: MPPT Operation on batteries/solar Indefinite under normal conditions | L X W X H: 3.5 X 2 X 2.7M (with draw bar, fender) Operating height: 4m Rotating degree for message panel: 360 Trailer has the brake system for the message panel, so it can stop on the certain position. For corner jack stands: 15 inch, 3000LBS Draw bar jack stand (with 6inch jockey wheel): 2000LBS Coupler: 3000LBS; 50mm ball Wheel type: 14 inch Disc brake system for the wheel Hydraulic function for operating message panel lift Extension legs Manual Hydraulic Backup 3mm steal check plate |
