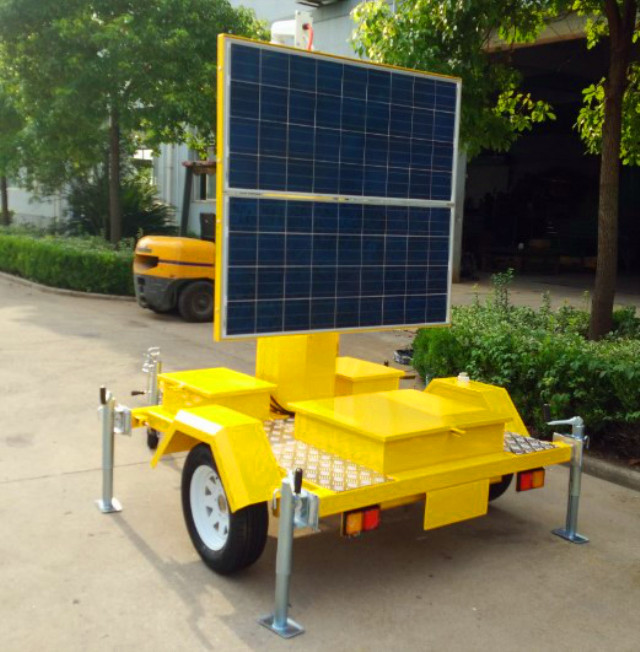

Solar Powered Portable PTZ Camera Surveillance

Technique parameter

Camera

Camera type   Clear-domed day/night, pan-tilt-zoom (PTZ)

Optical zoom   23X standard, 35X optional

Video   Motion JPEG and MPEG-4 streams

Network security   Multiple user-access levels, IP address filtering, HTTPS encryption, IEEE 802.1X authentication

Communications   High-speed 3G cellular router, accessible via TCP/IP Internet connection (no local access)

Recording   On board digital recording

Tower   Electric-winch operated

Trailer

Weight, approx.    700KG

Construction   MIG welded, unibody-style

Finish   Oven-baked powder coat

Footprint, deployed   220x365cm

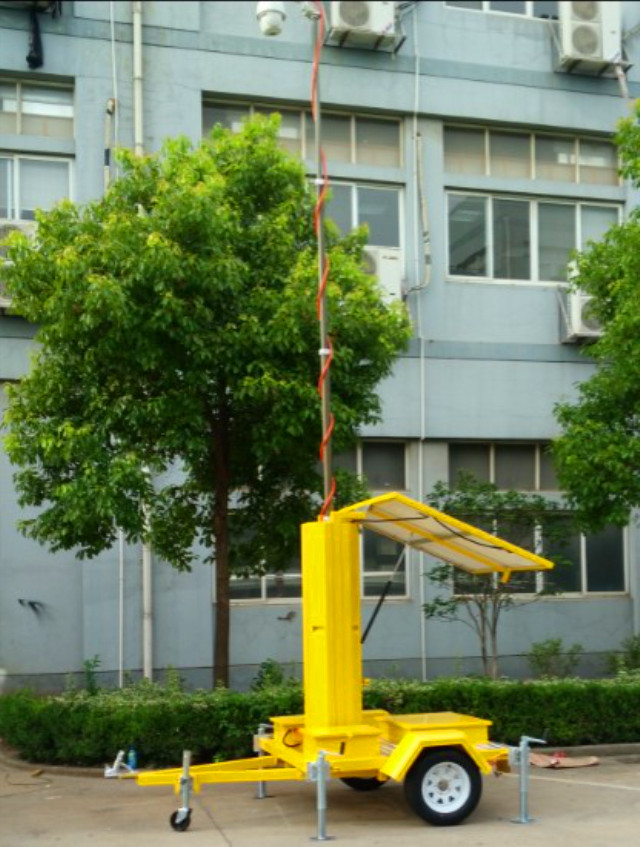

Camera height   Up to 6m

Travel height   205cm

Tow hitch   Standard combo hitch, 2-in. ball or 2½-in. dia. x 1-in. CS pintle coupler

Power system

Batteries   400ah deep cycle

Solar panel array   280w

Low-voltage disconnect

Disengages power to equipment when battery voltage gets low; system automatically restarts when batteries are recharged; voltage and temperature settings are adjustable
